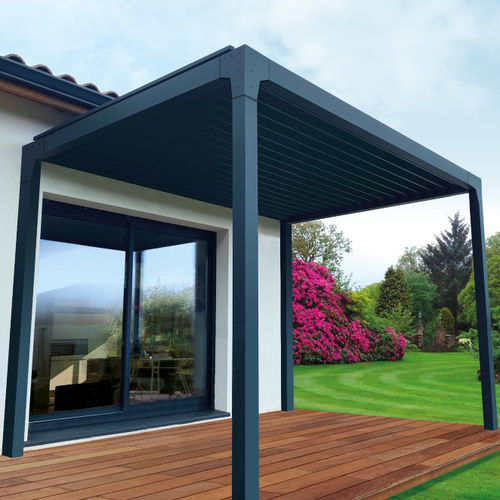

Self-supporting pergola L1extruded aluminumwith mobile slatssun shade louvers
Add to favorites
Compare this product
Characteristics
- Installation
- self-supporting
- Material...
- extruded aluminum
- Canopy material
- with mobile slats, sun shade louvers
- Specifications
- custom, bioclimatic, modular
- Options and accessories
- manual
- Style
- contemporary
- Ecological characteristics
- made from recycled materials
- Color
- white, customizable color
- Length
3,940 mm
(155.12 in)- Width
4,000 mm
(157.48 in)
Description
MANUAL BIOCLIMATIC PERGOLA (Crank handle) ALUMINIUM L1 SELF-SAVING CUSTOM-MADE ORIENTABLE BLADES
Max. projection: 3940mm
Max. width: 4000mm
- Extruded aluminum structure
- Unlimited choice of universal RAL structure colors
- Extrusion thickness: 1.5 to 2 mm (depending on profile)
- 167x35 mm double-wall extruded aluminum blades with 100% watertight seal
- Slat rotation 0° to 80
- Load resistance 45kg/m² - i.e. 720kg/16m².
- Blades + Structure with integrated seals
- x4 feet 105 x 105 mm, base height 2500 mm (can be cut to size)
- Posts up to 3000 mm possible
- Blade mounting by clipping system
- Winch mechanism
- Extruded aluminum winding tube, diameter 79 mm
- Floor mounting bracket
- Self-supporting installation
- Stainless steel screws
- 100% flat roof
- Water drainage through supporting beam
- Approximate weight for a 4 x 4 m pergola +/- 350 kg
- Made in France
- 10-year warranty
- Free delivery in mainland France
- Indicative delivery time 8/10 weeks
