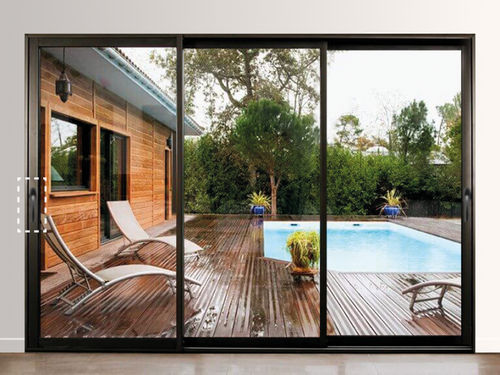

Sliding patio door

aluminum framedouble-glazed3 leaves

Custom 3-panel Aluminium Sliding Window SYSTEM PROFILES (Main Opening Left - Opening Right) -CUZCO® Aluminium SYSTEM PROFILES -Frame + sash width 102 mm; Mullion width 34 mm -Sash thickness 28 mm Frame delivered factory-assembled -Basic glazing 4/20/4 ARGON (28 mm), low emissivity -Performance without thermal shield: Uw = less than 1.4 w/m².K / Sw = 0.53 / Tlw = 0.66 -Performance with TH+ heat shield (optional) : Uw = less than 1.3 w/m².K / Sw = 0.53 / Tlw = 0.66 -AEV rating: A*3-E*6B-V*C2 -Complies with RT2012 and BBC regulations -BBC airtightness: A*3 and A*4 -CSTB approval: DTA number 06/18-2377 -Patented system -Aluminium AGS6060 T5 Building quality -QUALITÉ MARINE treatment as standard -QUALICOAT label, 60 micron thickness as standard -QUALANOD label, 20 micron thickness as standard -Tested to 15,000 ‘intensive use’ cycles -Aluminium or stainless steel rails (optional) -Black glazing spacer -Thermal break -Reinforced polyamide rollers with needle bearings -Recessed threshold possible: add + 41mm (max) to overall height Optional 5-point lock handle -Black glazing spacer -Black double seal system for optimum thermal and acoustic tightness -Hidden seals 1-point recessed shell on each leaf -Straight cut assembly (sashes) Mitre-cut assembly (frame)
