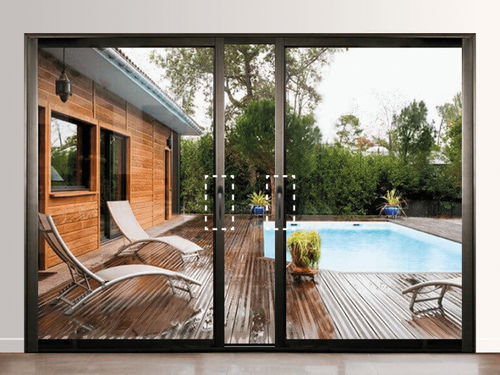

Pocket patio door

aluminum framedouble-glazeddouble leaf

2-panel Sliding aluminium bay window PROFILES SYSTÈMES Monorail Sur Mesure -Aluminium sliding window casement CUZCO® SYSTEM PROFILES -Frame + sash width 102 mm -Sash thickness 28 mm Frame delivered factory-assembled -Thermal performance: Uw = less than 1.4 w/m².K / Sw = 0.53 / Tlw = 0.66 -AEV rating: A*3-E*6B-V*C2 -Basic glazing 4/20/4 ARGON (28 mm) -Complies with RT2012 and BBC regulations -BBC airtightness: A*3 and A*4 -CSTB approval: DTA number 06/18-2377 -Patented system -Aluminium AGS6060 T5 Building quality -QUALITÉ MARINE treatment as standard -QUALICOAT label, 60 micron thickness as standard -QUALANOD label, 20 micron thickness as standard -Tested to 15,000 ‘intensive use’ cycles -Aluminium or stainless steel rails (optional) -Black glazing spacer -Thermal break -Reinforced polyamide rollers with needle bearings -Recessed threshold possible: add + 37mm (max) to total height Optional 5-point lock handle -Black glazing spacer -Black double seal system for optimum thermal and acoustic tightness -Hidden seals 1-point recessed shell on each leaf Straight-cut assembly (sashes) Mitre-cut assembly (frame) -Bottom rail reinforcement -NF certified CEKAL-certified glazing -Approximate weight for a 2.15 x 3 m roller shutter +/- 180 kg -Colourfastness guaranteed for up to 25 years
