Aluminum window

casementdouble-glazed1 leaf

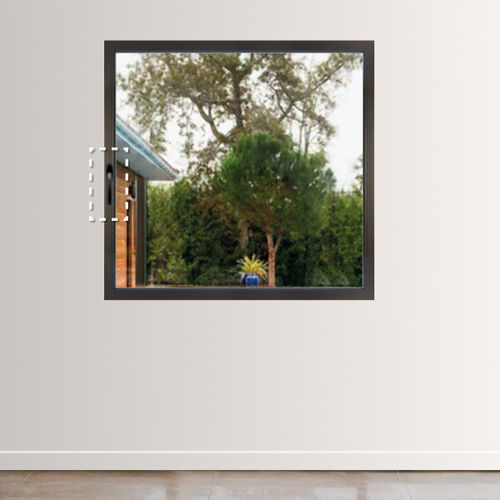

1-leaf aluminium window PROFILES SYSTÈMES Right or left hand hung Concealed opening French style Made to measure - Minimum height: 450mm, - Maximum height: 2250mm, - Minimum width: 400mm, - Maximum width: 1200mm, - CUZCO® SYSTEM PROFILES aluminium joinery, - Choice of right or left-hand tie-rod to be defined, - Unlimited structural colours (choice of universal RAL), - Concealed sash, - Frame + sash width 70mm, - Frame thickness 70mm, - Sash thickness 78mm, - Frame delivered factory-assembled, - With or without thermal shield (details of coefficients available on our website), - AEV classification A*4 E*7A V*A2, - Choice of glazing, - RT2012 and BBC compliant, - BBC airtightness: A*3 and A*4, - CSTB approval: DTA number 06/18-2386_V1, - Patented system, - Aluminium AGS6060 T5 Qualité Bâtiment, - QUALITÉ MARINE treatment as standard, - QUALICOAT label, 60 micron thickness as standard, - QUALANOD label, 20 micron thickness as standard, - Test obtained 15,000 ‘intensive use’ cycles, - Black glazing spacer, - Thermal break, - Choice of handle, - Visible hinges (optional concealed hinges), - Black glazing spacer, - Double grey lip seals for optimum thermal and acoustic tightness, - Concealed seals and sash, - Available with or without integrated roller shutter (as required), - Multi-point espagnolette lock (depending on height), - Mitre-cut glazing beads,
