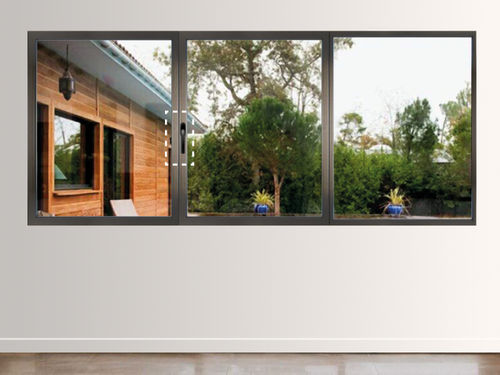

Casement window

aluminumdouble-glazed3 leaves

3-pane aluminium window PROFILS SYSTÈMES (2 concealed sashes + 1 fixed on the right or left) French style opening to measure - Minimum height: 450mm, - Maximum height: 2250mm, - Minimum width: 1200mm, - Maximum width: 3000mm, - Choice of right or left-hand pull, - Unlimited structure colours (choice of universal RAL), - Available with or without integrated roller shutter (choice), - With or without heat shield (coefficients available on our website), - Choice of glazing, - CUZCO® SYSTEM PROFILES aluminium joinery, - Concealed sash, - Frame + sash width 70mm; central handle mullion width 68mm, - Frame thickness 70mm, - Sash thickness 78mm, - Frame delivered factory-assembled, - AEV classification A*4 E*7A V*A2, - Basic glazing 4/20/4 FE ARGON (24 mm), - RT2012 and BBC compliant, - BBC airtightness: A*3 and A*4, - CSTB approval: DTA number 06/18-2386_V1, - Patented system, - Aluminium AGS6060 T5 Qualité Bâtiment, - QUALITÉ MARINE treatment as standard, - QUALICOAT label, 60 micron thickness as standard, - QUALANOD label, 20 micron thickness as standard, - Black glazing spacer, - Thermal break, - Choice of handle, - Visible hinges (optional concealed hinges), - Black glazing spacer, - Grey double lip seal system for optimum sound and thermal tightness, - Concealed seals and sash, - Multi-point espagnolette lock (depending on height), - Mitre-cut glazing beads,
