Characteristics

Type
modular, single-sided
Material
galvanized steel
Applications
wall, large-area

Description

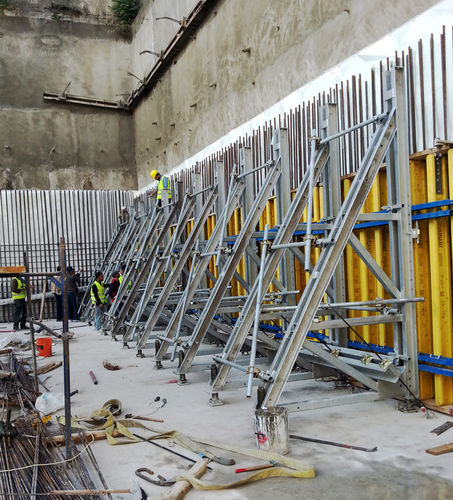

The system of modular supporting frames by Variant is used for single-sided walls forming such as retaining walls, dam walls etc. Shear forces which appear on the formwork shutters owing to fresh concrete pressure, are held and redistributed on the base by means of modular supporting frames and diagonal anchors. Single-sided supporting system allows walls with the required pouring-height up to 8,00 m to be formed. Load-bearing capacity: Owing to its load-bearing flexibility, the Single-sided modular supporting system can be assembled and customized for different pressure of fresh concrete required, up to 50 kN/m2. Areas of use of the single-sided modular supporting system: Retaining walls; Dam walls; Stop-ends of walls and slabs with large thickness; Walls of great thickness, in this case single-sided system is to be installed on both sides; Walls where there is no place for installation of opposite formwork shutter (double-sided system). System adaptability: Flexible height adjustment; Easily combines with Variant’s wall systems, such as, framed formwork Varimax and large-area formwork Vertex 60; Rapid adaptation to any unevenness of the ground in an installation area; Can be used for special application. (e.g. positioned horizontally and anchored to the structure used as heavy-duty working platforms). Cost-effective; Can be repositioned by use of wheel units, in order to save crane time; Large areas of single-sided wall can be easily cast; High number of use cycles means lower follow-up expenses; Reduction of expenses by means of system adaptability; Galvanized steel frames, for long service life.

VIDEO
