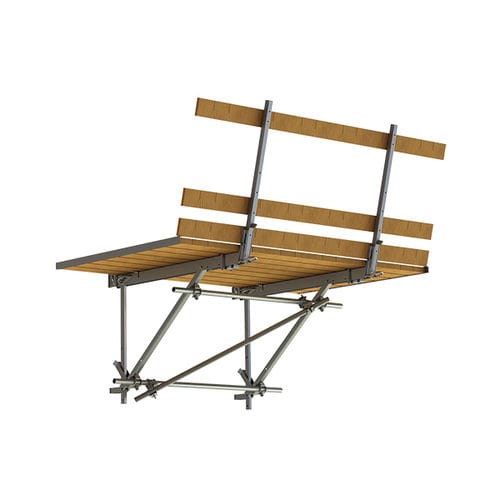

Construction platform CWP

outdoor

The system of working/protective platforms is based on Variant’s folding brackets CWP. The system can be easily pre-assemble in ready to use platforms. With only one crane lift the whole platform can be installed/shifted or reinstalled into a new working area. Owing to system versatility the folding brackets CWP can be used for all types of construction and safety tasks. Depending on your construction needs you can use the folding brackets CWP as: - working platforms; - protective platforms; - sloping-rooftop fall barriers; - protective canopies. Load-bearing capacity: High load-bearing capacity up to 600 kg/m2, meaning that wall formwork up to 5.5 m can be placed on the platforms. Depending on class load, live loads on working and pouring platforms per unit area vary: - Class 2 - 150 kg/m2 - Class 3 - 200 kg/m2 - Class 4 - 300 kg/m2 - Class 5 - 450 kg/m2 - Class 6 - 600 kg/m2 Loads at the suspension point, using suspension cone as an anchoring system - Vertical load (V)=24 kN, Horizontal load (H)=14 kN. Safe use: Safe working conditions provided by fully railed working platform; Dependable anchoring system of suspension cone.
