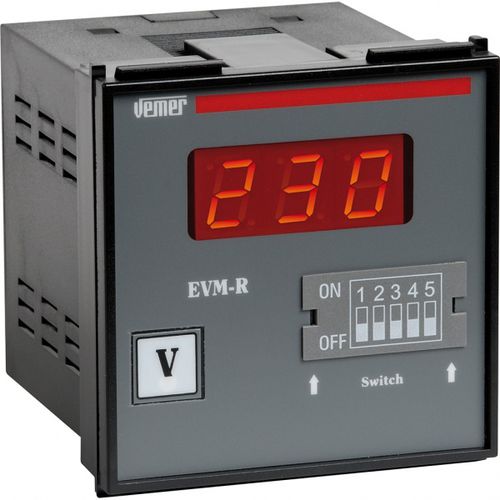

Energy manager EVM-R

Panel- mounting multifunction meter that can be configured as a voltmeter or ammeter to measure true effective value (TRMS) of voltages and alternate currents in single-phase systems. Red LED display for a good readability of the displayed measure at a distance. Power supply - 230V AC - 50/60Hz Installation - panel mounting Display - red LED Capacity - 600 V / x/5 A (on current transformer) Hour meter - 3 digits Dimensions - 72x72 mm Multifunction electronic device that can be configured as a voltmeter or ammeter for measuring the true effective value (TRMS) of voltages and alternate currents in single-phase systems • Multifunction instrument that can be used as Voltmeter or Ammeter depending on the type of connection. • Direct connection voltmeter up to 600 V AC • Ammeter with amperometric connection through TA x/5A from 5/5 to 4000/5 A: - from 5/5 to 1000/5 with increments of 5 - from 1000/5 to 4000/5 with increments of 500 • Minimum measurable value: 3% of full scale • Indication of values out of scale (“HHH”)
