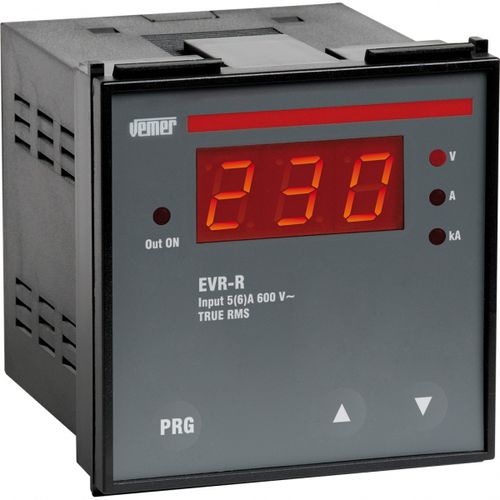

Panel-mounting multifunction meter for the measurement of voltage in single-phase systems.
The device can be used as a voltmeter or ammeter according to the type of connection.
It has an output relay which is activated when a settable threshold is exceeded.
It is possible to change the ammeter capacity through dip-switches on the front.
Red LED display for a good readability of the displayed measure at a distance.
Power supply - 24V AC - 50/60Hz
Installation - panel mounting
Display - red LED
Capacity - 600 V / x/5 A (on current transformer)
Number of relays - 1
Hour meter - 3 digits
Dimensions - 72x72 mm
Multifunction measurement instrument in maximum or minimum AC: the same instrument can be used as a multiscale Voltmeter or Ammeter with a relay output which depends on the measured measurement compared to a maximum or minimum intervention threshold that can be set.
• Power supply: 115 ÷ 230 V AC or 24 V AC
• Output: 1 relay with change-over contact 10 A / 250 V AC
• Setting of the alarm set-point, differential and switching delay
• Possibility of storing the alarm event
• Direct connection voltmeter up to 600 V AC
• Ammeter with amperometric connection through CT x/5A
• Selectable transformation ratios (for CT x/5 A):
- all multiples of 5 between 5 and 995
- all multiples of 50 between 1000 and 8000
• Minimum measureable value 3% of full scale
• Overrange indication (“HHH”)
