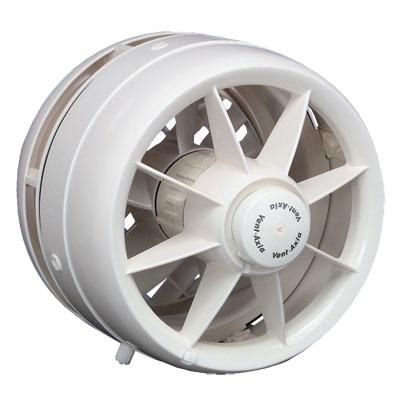

Extractor fan S6WW / S7WW / S9WW / S12WW

windowcommercialplastic

• Extract / intake model in 4 sizes: 6", 7", 9" and 12" • IPX4 Rated • Colour: White • Manufactured in weather-resistant polymeric materials • For the best performance from your fan, use an Ecotronic controller • Suitable for glass or panels up to 10mm thick Classic Retro-Style Ventilation This ever popular range of extract/intake fans continues to satisfy the most demanding requirements for efficient ventilation. The Vent-Axia Standard Range fitting kit unit is supplied without a shutter. The shutter is available as an accessory, which can be easily fitted within the unit. Standard Range Window Fans and Fitting Kits are suitable for most forms of single glazing or can be wall mounted in a Vent-Axia fixing plate. Vent-Axia’s patented spigot and ring method of fixing ensures easy installation and a weather proof joint. The simple integrated component design makes installation and servicing easy. PRODUCT SPECIFICATION: Motor Purpose designed enclosed motor. Suitable for running at any angle. Quiet running, enclosed. Supply voltage 220-240V/1/50 Hz. Suitable for operation in ambient temperatures from -40° to +50°C. Fitted with Standard Thermal Overload Protection (S.T.O.P.). Shutter Type SD/R The extract/intake shutter fits inside the Vent-Axia unit and closes against unwanted back draughts. It can be fitted at the same time as the unit or at a later date if required. Airflow operated for extract use, cord operated lock for intake use. For all models mounted in vertical surfaces only.
