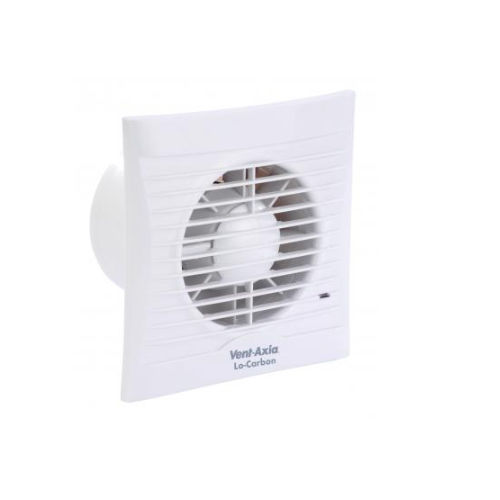

Extractor fan LO-CARBON SILHOUETTE 100 / SELV SERIES

wall-mountedceilingwindow

Models Basic/Timer/Humidity - Installation options Low power consumption - Lower running costs Fully opening and closing non-transparent shutters - Improved insulation and privacy Meets current Building Regulations Approved Document F & L 1 of 2 speeds selectable at installation Blue power indication light (except B model) - Modern aesthetics Ball bearing motors for vertical or horizontal application Unique humidity sensor track - Improved response 5 Year Motor Guarantee IPX4 rated - IPX7 rated (SELV) Suitable for wall, ceiling, panel and window mounting Slimline Bathroom Ventilation With a slim profile of only 17mm, Lo-Carbon Silhouette blends in with the wall surface to provide an unobtrusive installation. Lo-Carbon Silhouette has an FID performance of up to 30l/s. It can be ceiling/panel mounted and connected to an appropriate duct run to the outside. Safety Extra Low Voltage (SELV) Fan Safety Extra Low Voltage (SELV) is designed for areas where a fan has to be fitted within zone 1 in a room containing a fixed bath or shower according to IEE wiring regulations. The Silhouette SELV can be safely installed within the spray area. The fan is rated IPX7, control is by the supplied mains safety isolating transformer with 12V DC SELV output, which is sited away from any source of spray and out of reach of a person using a fixed bath or shower. SELV transformer to BS EN 60742. Lo-Carbon Silhouette 100B 100mm bathroom/toilet fan with back draught shutter. Lo-Carbon Silhouette 100T (Timer) 100mm bathroom/toilet fan with integral adjustable electronic overrun timer (5-30 mins), indicator light which operates on manual override only, and back draught shutter.
