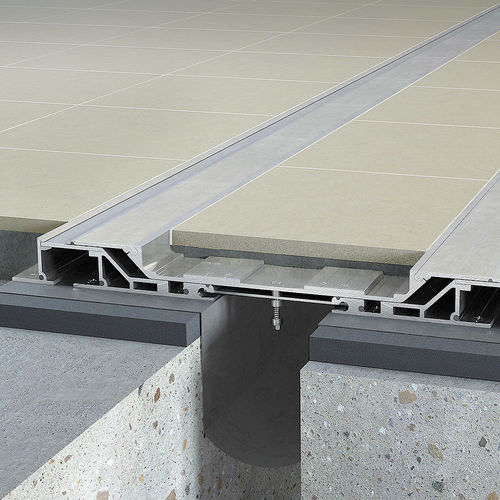

Aluminum expansion joint SEISMATEC 410-A01/A02

for floorfor wallseismic

Surface Smooth transit central pan system. During a seismic event the central pan lifts and the winged side frames rotate to provide safe egress to people with mobility difficulties. Fully Americans with Disabilities Act (ADA) compliant across the entire movement cycle Movement Seismic movement capacity ASTM E-1399 Class I: Thermal Class II: Wind Class III: Seismic Seismic movement: +/-50% of expansion gap width Additional information Gap width(s) - 100, 150, 200, 250, 300, 400, 500 mm Height(s) - 50, 60 mm Metal type(s) - Aluminium Fire barrier - 120- 240 minutes Waterproofing - Waterproofing membrane Pre-assembly in factory - Contact Vexcolt for more information; +44 (0) 208 194 5999, info@vexcolt.com, www.vexcolt.com
