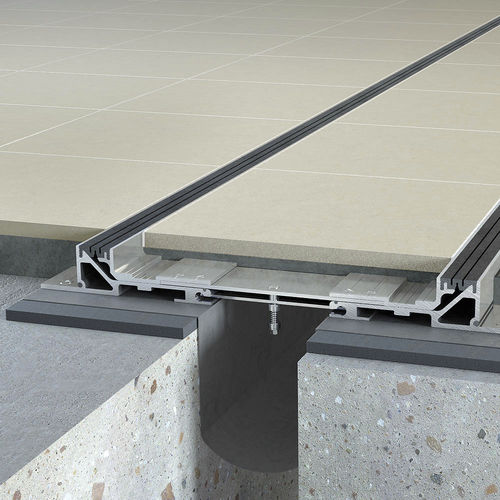

Aluminum expansion joint SEISMATEC 430-A01/A02

for floorfor wallseismic

Surface Smooth transit central pan system Movement Seismic movement capacity ASTM E-1399 Class I: Thermal Class II: Wind Class III: Seismic Thermal & Wind movement: +/-12.5mm Additional information Gap width(s) - 50, 75, 100, 150, 200, 250, 300, 400, 500 mm Height(s) - 50, 60 mm Metal type(s) - Aluminium Fire barrier - 120- 240 minutes Waterproofing - Waterproofing membrane Pre-assembly in factory - Contact Vexcolt for more information; +44 (0) 208 194 5999, info@vexcolt.com, www.vexcolt.com
