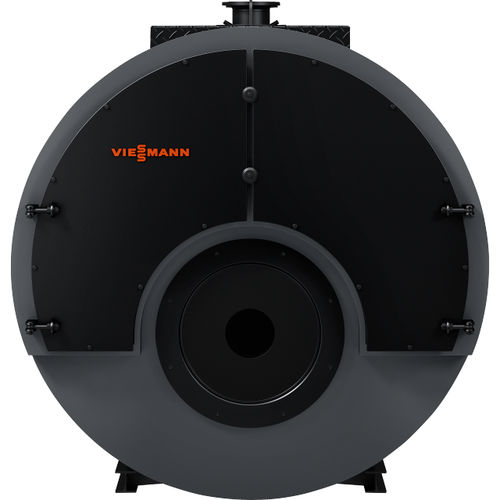

Fuel oil boiler VITOMAX LW

gasfor heating onlyindustrial

Vitomax LW low pressure hot water boilers from 0.65 to 22.0 MW for commercial application Hydrogen up to 100 percent In chemical operations such as the manufacture of chlorine and other industrial processes, most of the hydrogen gas is not used and is released into the atmosphere. Vitomax boilers, which can run on 100 percent hydrogen with an appropriate burner, offer a cost effective and efficient solution. They also prevent a large quantity of climate-damaging CO2 emissions. The energy efficient and clean provision of heat, along with high operational reliability and plant availability, are essential requirements for heating centres in large buildings and industrial plants. Vitomax LW are low pressure hot water boilers for flow temperatures ≤ 110 °C and a permissible operating pressure of 6, 10 or 16 bar. The three-pass boiler features low combustion chamber loading with clean combustion and low nitrogen oxide emissions. In gas operation, the low NOx series have NOx emissions of less than 70 mg/Nm3; in oil operation they are less than 150 mg/Nm3. A low stress, space saving design ensures good natural circulation and reliable heat transfer. As with the Vitomax HW, additional boiler pumps are not required, which significantly simplifies the hydraulic connection. The optimum heating surface and smoke tube design ensures low pressure drop on the hot gas side. All Vitomax LW low pressure hot water boilers are suitable for the combustion of up to 100 % hydrogen when complying with our framework conditions for the use of H2.
