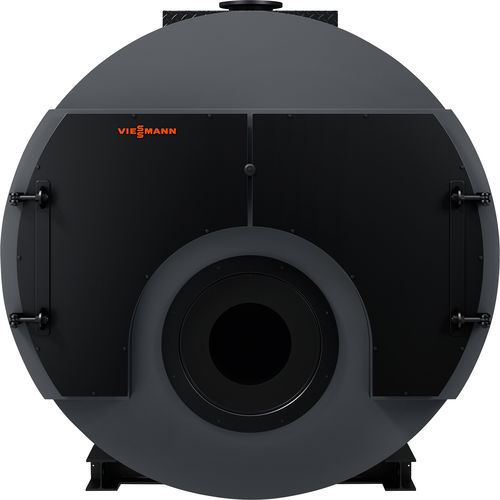

Fuel oil boiler VITOMAX HW

gasfor heating onlyindustrial

Vitomax HW high pressure hot water boilers from 0.35 to 20.0 MW for industry Hydrogen up to 100 percent In chemical operations such as the manufacture of chlorine and other industrial processes, most of the hydrogen gas is not used and is released into the atmosphere. Vitomax boilers, which can run on 100 percent hydrogen with an appropriate burner, offer a cost effective and efficient solution. At the same time a large amount of climate-damaging CO2 emissions is avoided. The Vitomax HW high pressure hot water boilers meet all new statutory requirements for particularly clean combustion. The efficiency of these boilers with heat exchanger is over 95.5 percent, even at 100 percent load. Regardless of the fuel used, the Vitomax HW delivers an output of up to 20.0 MW. It is specifically designed for the manufacturing industry as well as local and district heating networks where high flow temperatures and pressures are required. Low stress, space saving design ensures good natural circulation and reliable heat transfer. No additional boiler pumps are required, making hydraulic connection significantly easier. The Vitomax HW can be operated very flexibly with light or heavy fuel oil, bio-oil or even (bio) natural gas. No concrete is used for the optional innovative burner entry point in Vitomax boilers. This means it is water-cooled, and wear and maintenance-free, eliminating the need for replacement during the service life of the boiler. Water cooling guarantees a constant temperature around the burner head –– the otherwise usual reflection from a refractory lining (which causes thermal NOx to form) does not occur.
