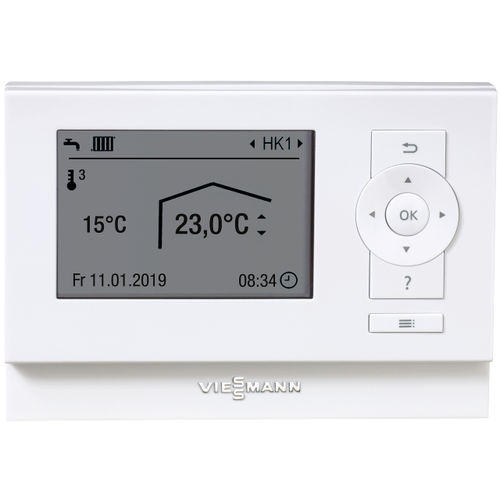

Heating remote control VITOTROL 200-E

mattewall-mounted

Hardwired remote control for heating systems. Time programs for up to four heating circuits Convenience functions such as holiday program Specification of set temperatures Integral room temperature sensor The Vitotrol 200-E is a hardwired remote control unit that can be installed in any living space. Time programs for up to four heating circuits and DHW cylinders With convenience functions such as holiday program/holiday at home program Specification of the set DHW temperature and up to 3 set values for the room temperature With integral room temperature sensor for room temperature hook-up (only for one heating circuit with mixer) With backlit graphic display for indication of outside temperature, room temperature & operating states Hardwired communication via PlusBus Extra low voltage (ELV) plug, 2-pole socket terminal 2-core lead, max. length 50 m (even when connecting several remote control units) On-site 2-core lead, minimum cross-section 0.75 mm², max. total cable length of the Plus bus 50 m Connection of up to two Vitotrol 200-E remote control units possible Never route this lead immediately next to 230/400 V cables Extra low voltage (ELV) plug included in standard delivery
