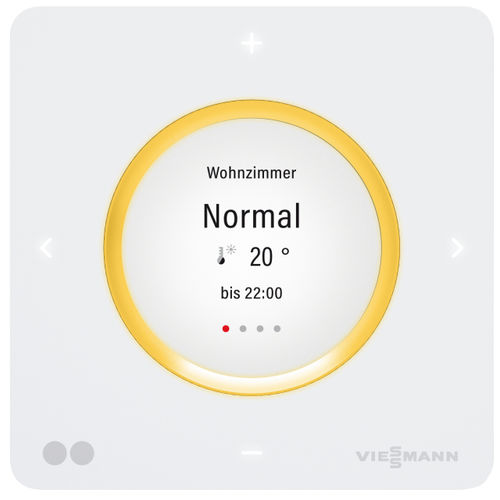

Wireless remote control VITOTROL 300-E

for heatingsmoothwith touchscreen

Wireless remote control with built-in low power radio transmitter for controlling heating systems. With backlit graphic display Intuitive colour-coded user navigation Set room temperatures of different operating modes Convenience functions such as holiday program The Vitotrol 300-E is a high quality wireless remote control for operating the heating system that can be installed in any living space. It communicates with the heating appliance through low power radio. Setting of set room temperatures in various operating modes (Comfort, Normal & Reduced) for one, two, three or up to four heating circuits With convenience functions such as holiday program/holiday at home program With backlit graphic display for indication of outside temperature, room temperature & room air humidity With intuitive colour-coded user navigation (Lightguide) With encrypted 2.4 GHz low power radio connection With optional 2.4 GHz WiFi connection for automatic software updates Plug-in power supply unit, 5 V (white) Can be ordered separately: Flush mounted power supply unit, 12 V (not included in the standard delivery) With the boiler via low power radio connection Via WiFi with the DSL router (via heating appliance) Micro USB port for 5 V plug-in power supply unit (white) Threaded fitting for flush mounted power supply unit (can be ordered separately) Do not use more than one Vitotrol 300-E per heat generator: Not in conjunction with hardwired remote control units
