Model UDQ1610SQI2IV
Width 1000 mm
Height 40 mm
Depth 15 mm
Length 1600 mm
Weight 46 kg

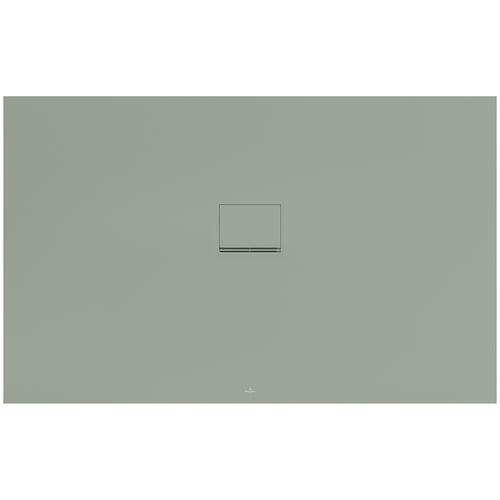

Product description Shower tray
description only flush-fit installation
Technical information:: Cut shower tray (side unprocessed)., Drainage capacity: 48 l/min, The installation height of the shower tray can be reduced by 30 mm if the Viega outlet fitting art. no. 634 100 is used. Please note: this outlet fitting does not conform to EN 274., All shower trays are classified as anti-slip class C (in accordance with DIN51097), Surface-mounted models can be fitted in a niche or flush-fit with the floor., Quaryl shower trays can be cut to size on site according to the installation instructions; detailed video at pro.villeroy-boch.com/squaroinfinity or QR code on this page.
These shower trays are cut along the short side.
Outlet cover in matching matt colour with chrome-plated strip., The extra charge for cutting already in the total price!
Not included in scope of delivery:: All shower trays are supplied without support/base., With cut shower trays, we recommend the use of a composite seal in accordance with ETAG 022 on the floor structure below the shower tray in order to prevent any moisture from penetrating the floor structure.
Diameter: 90 mm
material Quaryl®
