COLLECTION - Squaro Infinity
PROJECTS - DESIGN
MODEL - UDQ1810SQI2V
WIDTH - 1000 mm
HEIGHT - 40 mm
DEPTH - 15 mm
LENGTH - 1800 mm
WEIGHT - 49,5 kg

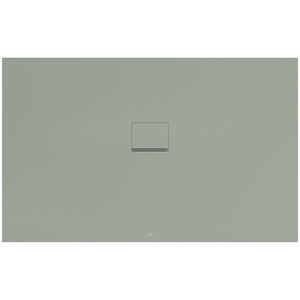

PRODUCT DESCRIPTION - Shower tray
DESCRIPTION -
standard models for all installation types (can be cut to size)
Technical information: Drainage capacity: 48 l/min, The installation height of the shower tray can be reduced by 30 mm if the Viega outlet fitting art. no. 634 100 is used. Please note: this outlet fitting does not conform to EN 274, All shower trays are classified as anti-slip class C (in accordance with DIN51097), These shower trays are not cut and can be used for all types of installation (recessed in the floor, on the floor, on a base)., Quaryl shower trays can be cut to size on site according to the installation instructions; detailed video at pro.villeroy-boch.com/squaroinfinity or QR code on this page.
Outlet cover in matching matt colour with chrome-plated strip.
Not included in scope of delivery: All shower trays are supplied without support/base.
Diameter: 90 mm
MATERIAL - Quaryl®
