Wall infrared heater THERMOLOGIKA / DESIGN

electriccommercial

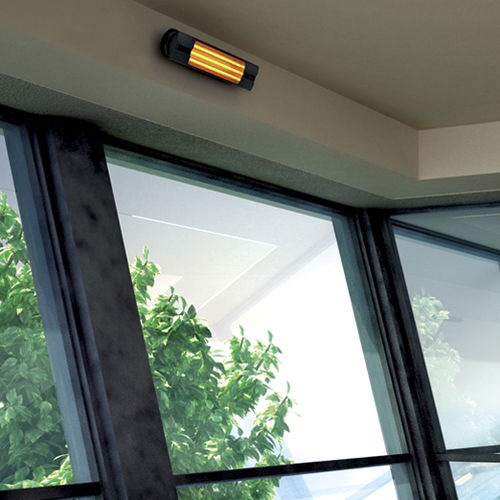

Description • Die-cast aluminium end sections with painted finish, colour black. • Casing sections: pressed steel with painted finish, colour light grey. • Grille fashioned with stainless steel rods • Pressed steel mounting bracket with painted finish. • 3 x infrared bar, each rated 600 W. The single bars can be controlled from remote switches, by-passing the internal selector and making the necessary connections to the terminals provided. • Pull cord switches for on/off control and selection of the 3 heat output settings (600/1200/1800 W). • Wall-mounted installation using bracket provided as standard and adjustable through 20° so that the infrared rays can be directed at the point where heat is required; the fixture is made secure with a safety screw. • Facility of connecting two bars in series or in parallel by means of a special kit comprising brackets and junction box (optional, code 22496)
