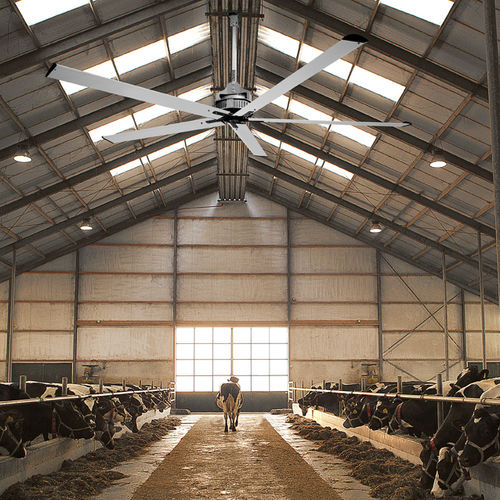

Axial fan NORDIK HVLS SUPER BLADE 700/280" S
ceilingindustrialmetal

axial fan
axial fan
axial fan
axial fan
axial fan
axial fan
axial fan
Add to favorites
Compare this product


Characteristics

Type
axial
Installation
ceiling
Sector
industrial
Material
metal
Air flow

Min.: 0 m³/h (0 ft³/h)

Max.: 850,000 m³/h (30,017,466.7 ft³/h)

Description

• Nominal diameter of blades: 700 cm. • Three-phase EC (brushless) motor, thermally insulated, able to supply higher performances ("S" version). • Aero-foil blades made of extruded aluminium, equipped with winglets able to decrease the drag caused by wingtip vortices. • Electronic board allowing power management and functioning control, with EMI/EMC filters to prevent risks of electromagnetic interference, housed in motor covers. The electronic board includes: • A ModBus RTU 485 communication port, allowing BMS integration, • An insulated analogic port allowing the fan speed regulation through the external potentiometer (available as optional) or through another 0-10 V signal working device. • Safety system integrated into the electronic board including protection against overcurrent, short circuit, overheating, overvoltage and under-voltage. • External Led light able to show possible product malfunctions. • Steel sheet ceiling installation kit composed of rod (nominal length 1,5 m), a pair of brackets and relative metal parts, supplied as standard. This kit allows the correct and robust device mounting to the ceiling in the most common installation type. • Optional kit consisting of a pair of rods, designed to allow greater axial stability. This kit is mandatory in case of: • Strong wind, • Risk of accidental collisions with machines or objects in motion near the ceiling fan, • Presence of birds, • Seismic zone installation or areas characterized by vibrations (ex. Industrial processes involving the use of hammers or industrial presses).
