light controller
light controller
Add to favorites
Compare this product

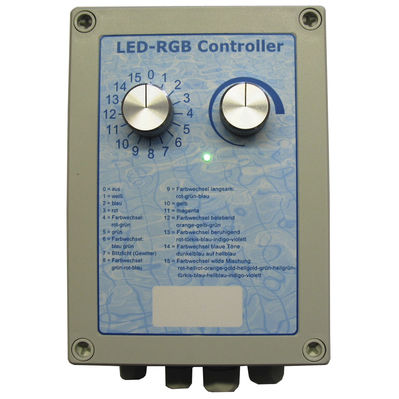

Controller for LED RGB spots with an operation current of 350 mA. You can connect up to 10 pieces of 3 x 1 W spots to one RGB controller. The controller can realise 15 different light programmes in combination with the RGB spots for example: White, Red, Green, Blue, Red-Green color change, Blue-Green color change, Red- Green-Blue color change, Flashlights etc. The setting of the light programmes is done by a code switch. Optionally the light controller can be controlled externally by a four-digit digital code. The connected spotlights can be dimmed by a 2nd poti at the control housing. If more than 10 spots are required the controller can be extended by „Slave“ module(s). These modules are then connected by a data BUS. This connection leads to synchronic color effects of the whole illumination.
