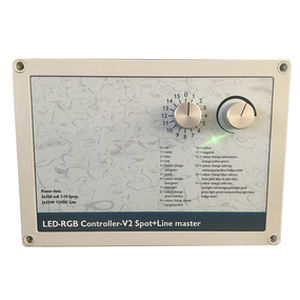

Controller for LED-RGB linelights with a working voltage of 12 V/DC (optionally 24 V/DC). You can connect up to app. 5 m of linelights (max. 105 W) to one controller. The controller can realise 15 different light programmes in combination with the RGB linelights: White, Red, Green, Blue, Red-Green color change, Blue-Green color change, Red- Green-Blue color change, Flashlights etc. The setting of the light programmes is done by a code switch at the housing. Optionally the light controller can be controlled externally by a four-digit digital code.The connected spotlights can be dimmed by a 2nd poti at the control housing.
If more than 105 W are required the controller can be extended by an extension module. These modules are then connected by a data BUS. This connection leads to synchronic color effects of the whole illumination.
