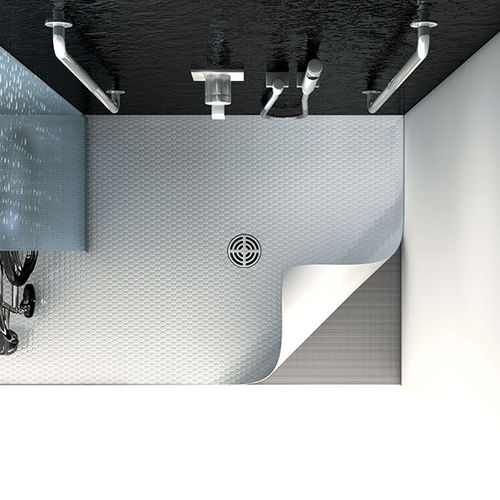

wedi is offering a floor-level shower system developed especially for PVC coverings and made from a highly close polystyrene expanded plastic slab. The innovative wedi Solso is the unrivalled shower floor system for wet areas in hospitals and private and public care facilities.
wedi Solso easily holds high pressure point loads up to
2,5 N / mm2 for example from wheelchairs or walking frames. At the same time, the whole system is considerably easier and quicker to install than other traditional building methods. Furthermore, the wedi Solso PVC surface can be attached to the drainage system without sticking and is waterproof.
Where safety, wear resistance, stability and cost-efficiency are called for, wedi Solso is the alternative, yet zeroalternative, shower system for installation underneath PVC.
Plate thickness (outer dimension) up to a shower size of 1200 × 1200 mm - 40 mm
Residual indentation following constant loading (with PVC covering)
in line with DIN EN 433 - ≤ 0,10 mm
Suitable for wheelchair loading - Yes
Minimum installation depth for horizontal installation - 130 mm
Minimum installation depth for vertical installation - 40 mm
Surface slope (from outer edge of Solso building board
to outer edge of drain opening) - 18 mm
= ≥ 3%
Frame for holding stainless steel grate (fixed in the element) - Ø 120 mm
Stainless steel grate - Ø 115 mm
Expanded polystyrene rigid foam core
Maximum recommended compressive strength
under service load - 2,50 N/mm2
Compressive strength at ≤ 2% long-term immersion in line with EN 13163 - 3,78 N/mm2
Compressive strength at 10% compressive strain in line with EN 13163 - 6,47 N/mm2
