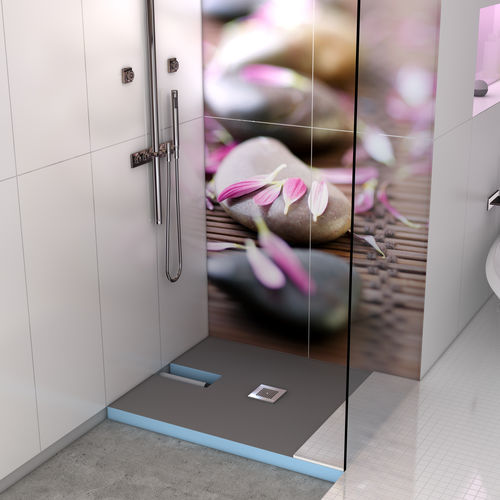

Square shower base FUNDO PLANO
floor levelconcretefiberglass

square shower base
square shower base
square shower base
square shower base
square shower base
square shower base
square shower base
Add to favorites
Compare this product


Characteristics

Shape
square
Type
floor level
Material
fiberglass, concrete, polystyrene
Options
extra-flat, flush, custom, with channel drain, barrier-free
Market
home
Height

65 mm (3 in)

Length

900 mm, 1,000 mm, 1,200 mm, 1,400 mm, 1,600 mm (35 in)

Width

900 mm, 1,000 mm, 1,200 mm (35 in)

Description

The thinnest wedi floor-level shower system currently on the market. With the pre-fabricated drainage, the total thickness of the system is only 65 mm. In the case of renovations where every millimetre counts, this innovation is absolutely unbeatable. The tileable floor units are not only highly practical and reliable, they have opened up a whole new world of design possibilities for wet rooms and bathrooms. Certainty thanks to a uniform predefined slope Entire system is 100% waterproof Simple and safe to work with - tested by those in the trade Wheelchair load-bearing from minimum tile size 50 x 50 mm; Glass mosaic from 3 mm, minimum size - 20 x 20 mm Minimum foundation height depending on the drain: - 65 mm Surface slope (from outer edge of Fundo floor element to outer edge) - ≥ 2,4 % Special drain with odour trap and stainless steel cover integrated into the Fundo floor element. ; - Frame for installation of stainless steel grid (fixed in element) - 136 x 136 x 8 mm Stainless steel grid - 132 x 132 mm Grid support frame - 136 x 136 x 24,7 mm Drain capacity - 0,50 l/s ; 30 l/min Connection pipe made from ABS - DN 40 Appropriate tile thickness - 8 – 25 mm Extruded polystyrene hard foam core - XPS Long-term compressive stress (50 years) ≤ 2% compression EN 1606 standard - 0,08 N/mm² Pressure resistance at 10% compression EN 826 standard - 0,25 N/mm² Thermal conductivity EN 13164 - 0,036 W/mK Basic density according to EN 1602 - 32 kg/m³ Temperature limits - -50°C / +75°C Fire behaviour EN 13501 - E Tested waterproofness - 1,5 bar
