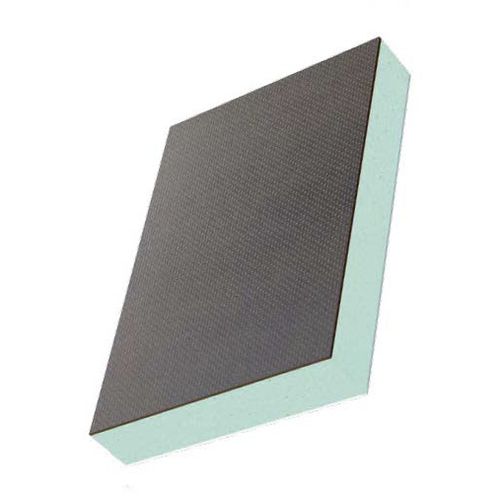

Floor sandwich panel COSMO TECH - CFK

laminated facethermoplastic core

Screen printing panel on one side, TK core, GRP on rear side SPECIAL CHARACTERISTICS - Outstanding mechanical characteristics - Low weight - Screwable using industrial screws for timber construction - High pressure resistance - High stiffness - High breaking load - Environmentally-friendly inserts (TK is 100% recyclable) APPLICATION EXAMPLES - Floor element in automotive manufacturing Technical information Top coats Screen printing, 5-layer birch multiplex, 145g phenolic resin, Coating / carbon-fibre reinforced plastics (CFK) Biaxial or multiaxial laying design Core material Thermoplastic plastics material (TK) Panel thickness (mm)/U-value (W/m²K)/Weight (kg/m²) 25,5/1,55/9,5 28,5/1,40/6,5
