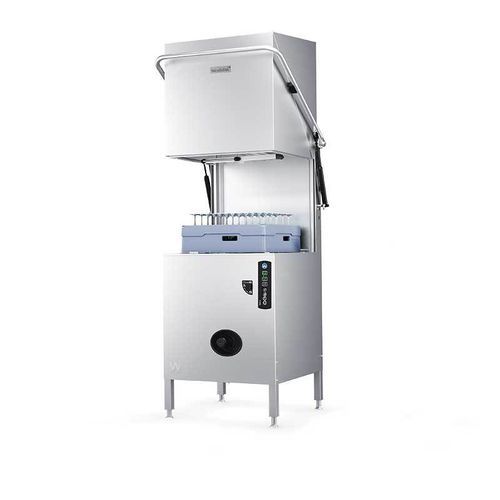

Professional glass washer WD-7 DUPLUS G

Short description

• Hood-type glass dishwasher designed to minimize manual polishing and improve hygiene
• Glasstilt tilts baskets during final rinse to reduce water marks and fingerprints
• DUPLUS double final rinse for efficient rinsing with reduced water consumption
• ECO-FLOW option for heat recovery and reduced drying time
• Dual water connections to integrate an RO unit

Description
Reliable hood-type glass dishwasher engineered for professional environments where consistent glassware results and operational efficiency are required. The WD-7 DUPLUS GLASS uses the Glasstilt function to angle the wash basket during the final rinse so water runs off the outer surface of each glass, reducing hand polishing and improving hygiene.

Key features

• Glasstilt: basket tilt during final rinse to promote run-off from the outer surface
• DUPLUS: double final rinse technology for improved rinse performance with optimized water use
• ECO-FLOW (option): heat recovery system that saves energy and shortens drying time
• Dual water connections: separate hot and cold lines; RO (deionised) water can be connected to the cold line
• Startup fills tank with hot water; cold/RO water used during wash cycles
• Hood angled at the rear to direct steam away from the washroom
• Optional automatic hood lift to protect baskets and contents
• Concave wash arms to reduce risk of clogging
• Automatic cleaning program to maintain hygiene levels
• Large waste tank and effective sieves keep wash water cleaner for longer
• Service-friendly: full front access for maintenance

Operation and water treatment
The machine is fitted with dual water connections: one for hot water to fill the tank at start-up and one for cold water where an RO-unit can be connected for deionised water during rinsing. Using RO water improves rinsing and reduces residues. Depending on local water quality, appropriate RO filtration is recommended to achieve optimal results.

Programs and rinse temperatures

• Programmes for different glass types (beer, wine, standard); cycle time varies by program
• Final rinse temperature for standard glasses: 85 °C
• Final rinse temperature for beer and wine glasses: 65 °C; delicate wine glasses receive a higher water volume in the final rinse

Accessories (examples)

• Steam hood, sorting unit, condensing unit, WD-RO150 water purifying unit, shelf for chemicals/RO-unit, lockable cabinet for chemical containers, basin line for soaking bulky items

Technical specifications

• Model: WD-7 Duplus Glass
• Product type: Hood-type glass dishwasher
• Main technologies: Glasstilt, DUPLUS double final rinse, ECO-FLOW (option)
• Water connections: Dual connections (hot and cold); prepared for RO-unit on cold connection
• Final rinse temperatures: 85 °C (standard), 65 °C (beer/wine)
• Hood: angled rear edge; optional automatic hood lift
• Wash arms: concave design to prevent clogging
• Hygiene: automatic cleaning program
• Waste handling: large waste tank with effective sieves
• Serviceability: serviced entirely from the front
• Origin: Made in Sweden
