Hood dishwasher WD-90 DUO TOUCH

for commercial kitchenfree-standingeco-friendly

Short description

• DUO system switches between normal and heavily soiled loads
• Digital WD-TOUCH display for full control of the washing process
• Fast drying through dual spin cycles
• Energy-efficient spin technology

Description

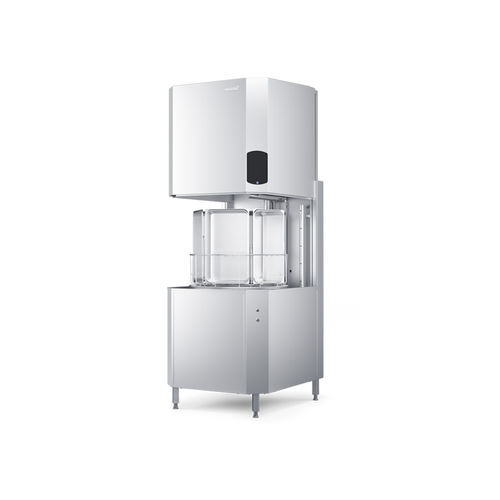

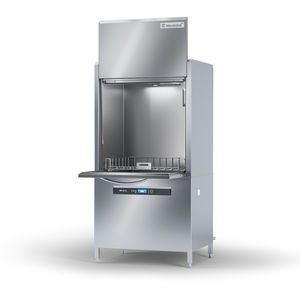

WD-90 DUO TOUCH is a combi pot/normal dishwasher designed to process both light and heavily soiled dishes, with or without granules. The machine features an automatic hood and through-pass design to optimise logistics, ergonomics and hygiene.

Short drying thanks to fast spin cycles
WD-90 DUO TOUCH performs a pre-rinse spin to remove dirty wash water before rinsing, reducing fresh rinse water consumption. A post-rinse spin reduces residual water and shortens drying time.

User interface
The digital WD-TOUCH display provides intuitive guidance through the wash programmes and operational settings.

• Optional ECO-FLOW condensing unit to save energy and reduce drying time
• Steam reduction by hood design as standard

Features and operation

• Includes stainless steel basket and adapted accessories for potwashing to ensure jets reach all surfaces
• Accessories secure items during spin and rotation to improve drying
• Hood design vents steam to the rear, improving kitchen workplace conditions
• DUO system accommodates large pots and small glassware in dedicated programmes
• Eliminates the need for manual pre-scrubbing on most items when using water and granules
• Easy to clean for improved hygiene and reduced downtime
• Service access from front or side for maintenance
• Hood automation reduces manual handling and strain
• Clear control panel with nine programme choices for straightforward operation
• Fast spin technology reduces water and energy consumption while shortening drying time

Granules
Granules are small blue beads placed in the wash tank where they circulate with water and detergent to remove food residues by combined mechanical and chemical action. Because they are denser than water they provide effective mechanical cleaning. For delicate glassware, use programmes without granules.

Accessories (examples)

• Collapsible stacking tables mountable front or side for easier handling
• Stainless steel potwashing basket with adapted inserts
• Dockable loading trolleys, trolley tables, sous-vide baskets and cleaning scrapers to simplify handling and maintenance

Technical specifications

• Model: WD-90 DUO TOUCH
• Type: Combi pot/normal dishwasher (through-pass / automatic hood)
• Washing options: Normal wash / Potwash / Potwash + Granules
• Number of programmes: 9
• Spin/drying: Pre-rinse spin and post-rinse spin for reduced rinse water use and faster drying
• Optional condensing unit: ECO-FLOW (energy and drying time savings)
• Steam reduction: Standard (hood vents to rear)
• User interface: Digital WD-TOUCH display
• Ergonomics: Automatic hood to reduce strain; service access from front or side
• Capacity indicators (related models): 250–1600 pcs; >1600 pcs (see product page)
• Included basket example: Round stainless steel potwashing basket, e.g. 6+1 GN 1/1 65 mm (accessories adapted to canteen sizes)
