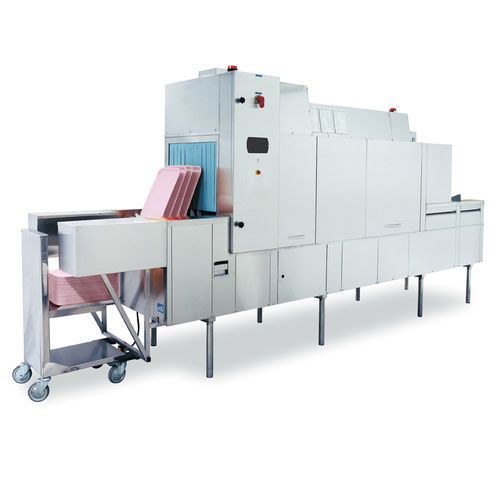

Conveyor dishwasher WD-40BRE

for cateringfree-standingeco-friendly

Short description

• For high-capacity, automatic tray washing
• Easy to operate via WD-Touch control panel
• Optimum washing and drying results
• Low energy consumption
• ECO-FLOW heat recovery

Description
Tray dishwashers designed for integration with automatic tray handling systems to maximise throughput and reduce manual handling. The WD-40BRE features a pre-rinse zone, a chemical wash zone, a final rinse zone and an efficient drying zone. The smart feed system combined with upright tray washing ensures high capacity and optimal use of washing and drying functions.

Key product features

• ECO-FLOW heat recovery reduces energy use by reutilising steam energy
• Sound and thermal insulation to improve the working environment
• Large, well-balanced sliding doors allow easy access for cleaning
• User-friendly design with long service life
• Easy serviceability: front access to all components for maintenance
• Electronic control with HACCP function for monitoring the washing process

Benefits

• Efficient tray handling: supports manual or automated handling to lower labour
• Patented loading system washes trays upright to increase capacity and improve drying
• Smart functions such as ECO-FLOW heat recovery that transfer steam energy to incoming water

Performance

• Capacity: 1,200 trays/hour
• Max. tray size: 580x530 mm

Technical specifications

• Model: WD-40BRE
• Product type: Compact tray dishwasher for automatic systems
• Washing zones: Pre-rinse, chemical wash, final rinse
• Drying: Efficient drying zone
• Control panel: WD-Touch
• Capacity: 1,200 trays/hour
• Max tray size: 580x530 mm
• Number of meals indication: More than 1,600 pcs
• Energy saving: ECO-FLOW heat recovery
• Insulation: Sound and thermal insulation
• HACCP: Electronic control system with HACCP monitoring
• Serviceability: Front access to all components for easy servicing
• Construction note: Trays washed in upright position for optimal utilisation
• Origin: Made in Sweden
