Clay cladding brick ASHLEY

for facadeexterior wallglued

Summary

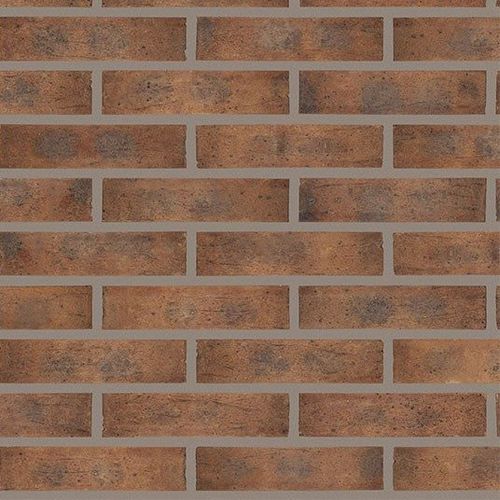

Ashley Red Multi is a facing clay brick manufactured by Terca (Wienerberger) at the Haaften plant. The brick is intended for external masonry and façade applications; colour, texture and appearance may vary between production lots and viewing conditions. We recommend ordering samples before specifying or purchasing.

Available downloads (file names)

• UK_MKT_DOC_BRI_11139927_Ashley_Red_Multi.pdf
• UK_MKT_11139907_Ashley_Red_Multi_50mm.jpg
• UK_MKT_11139927__Ashley_Red_NL.jpg

Technical data

• Production plant: Haaften
• Production method: waterstruck
• Pack quantity: 624
• Dimensions (L x W x H): 210 x 100 x 65 mm
• Size tolerance: T2
• Range tolerance: R1
• Gross dry density: 1750 kg/m³
• Compressive strength: ≥20 N/mm² (EN 771-1)
• Thermal conductivity: 0.530 W/(m⋅K) (EN 1745:2012: S1)
• Durability designation: F2 (EN 771-1)
• Water absorption: ≤12 % (EN 771-1)
• Reaction to fire: A1
• Active soluble salts: S2

Characteristics / Technical specifications

• Product type: Facing brick
• Format (L x W x H): 210 x 100 x 65 mm
• Pack quantity per pallet: 624
• Production method: waterstruck
• Size tolerance: T2
• Range tolerance: R1
• Gross dry density: 1750 kg/m³
• Compressive strength: ≥20 N/mm² (EN 771-1)
• Thermal conductivity: 0.530 W/(m⋅K) (EN 1745:2012: S1)
• Durability: F2 (EN 771-1)
• Water absorption: ≤12 % (EN 771-1)
• Reaction to fire: A1
• Active soluble salts: S2
