Concrete guard rail TVCB

road

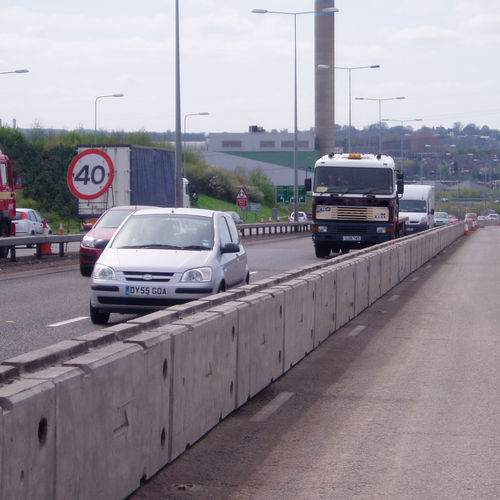

TVCB (Temporary Vertical Concrete Barriers) from Zaun are available in two levels of containment: Multibloc 80, which provides a Performance Class of N1 with a Working Width of W3 Multibloc 110, which provides a Performance Class of N2, again with a Working Width of W3 Both of Zaun’s TVCB‘s are designed to deflect an errant vehicle away from local hazards within or immediately adjacent to the highway, which have the potential to cause danger to the occupants of an errant vehicle, the workforce, or others. Each TVCB is connected at the scarf joint using M24 high tensile bolts. Each TVCB is manufactured from high strength concrete (50N / sqm) which, combined with approved steel reinforcing, enables the TVCB barriers to meet EN 1317 (Compliant Road Restraint Systems for Temporary Safety Barriers). Zaun’s Temporary Vertical Concrete Barriers (TVCB) are a perfect way to prevent unauthorised access or provide a safe temporary working area for your workforce; this could be along a roadside or construction site. TVCBs can also be used for major temporary events, from political summits to major sporting events such as the Olympics, Football World Cup or Commonwealth Games, to protect pedestrians from traffic or provide traffic barriers and bases for fixing fences. (see MultiFence & MultiFence PAS 68 for more details).
