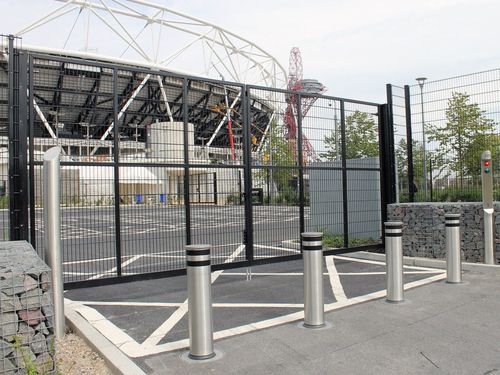

Swing gate SR1 (A1)

stainless steelwelded meshgreen

SR1 (A1) Security Rated Gates, manufactured by Zaun, specifically with security in mind. A1 rated gates, tested and approved to LPS 1175 Issue 8 by the Loss Prevention Certification Board (LPCB) and tested by the Buildings Research Establishment (BRE). This testing process has led to our products being entered into The RED BOOK. Our SR1 (A1) Security Rated Vehicle Gates are the perfect accompaniment to our SR rated fencing solutions. Each gate is supplied with welded mesh infills Duo8 SR1 or HiSec SR1. Mesh panels are clad to the attack side of a steel 50mm x 50mm SHS frame. All vehicle gates are supplied as standard at 3.0m wide, although other widths and single leaf options are also available upon request. SR1 rated gates, designed with an additional over clip and also special shear-drive bolts to the top and bottom of the mounting post of Zaun’s standard Duo8 gate to give the gates their SR1 rating. For the HiSec 358 gate, a clamp bar at the gate post’s side is included with bolts and stainless steel fixings. All gates above 1.8m in height are supplied three safety points, either supplied with three hinges and/or supplied with gate arrestor cables. This means that if any of the hinge points fail, then the gate will not fail and cause harm to pedestrians and property. The gate is designed to in a way to prevent the leaf from being lifted away from the gate post, making it difficult to vandalise or damage. At Zaun, we believe that if a gate is big enough to present a real risk of crushing, then the failure of one component should not allow it to fall.
