Electric towel radiator YUCCA ASYM

501 w...750 w300 w750 w

Overview

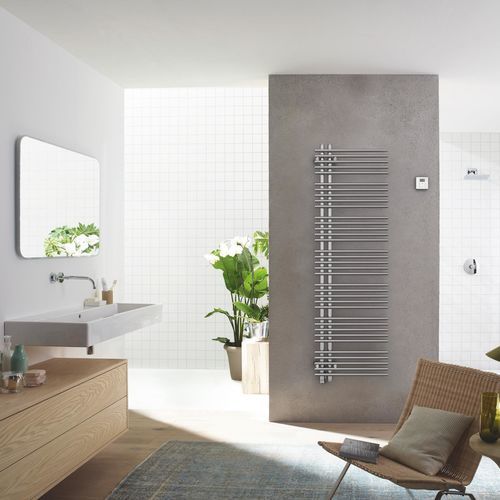

Zehnder Yucca Asym is an electric towel radiator with vertical tubes that can be arranged on the left or right. It is designed for convenient hanging of large towels and can also be used as a room divider. Available in a wide range of RAL/NCS and proprietary finishes from the Zehnder colour chart.

Benefits

• Compact radiator depth suitable for narrow bathrooms and service rooms
• Open access from both sides simplifies hanging and removing towels
• Configurations support additional applications such as room divider installation
• Clean-lined design integrates with technical and commercial interiors
• Easy maintenance using the Zehnder lambswool cleaning brush
• Rounded edges reduce risk of contact injury
• Multiple model variants with header tubes available left- or right-hand
• Maximum surface temperature of 65 °C on chrome-plated versions for enhanced safety

Electric operation

• Predefined timer functions provide heat when required
• Factory-fitted, integrated electric heating element reduces installation complexity
• Flexible control via Bluetooth and the Zehnder Connect app (Android™ / iOS)
• Low standby power consumption (~0.5 W) for improved energy efficiency
• Control knob for temperature setting and timer operation simplifies use on site
• Dry-run protection prevents element overheating
• Year-round provision of warm towels and room heating independent of hydronic systems
• Energy-saving "open window detection" reduces unnecessary heating
• User-friendly control device and remote control with four preset temperatures
• Supplied ready-to-plug for fast commissioning
• Compliant with the European Ecodesign Directive for high energy efficiency

Colour System
Available in almost any colour and finish from the Zehnder colour chart. Colour ranges include Standard, Warm Colors (Core & Trends) and Cool Colors (Core & Trends). Example reference: Traffic White (RAL 9016) as a standard option; many other RAL/NCS and proprietary finishes are offered.

Technical data (selected models, electric-only operation)
Model | H (mm) | L (mm) | Power (W)
Single-layer version, left-hand:
YAEL-130-40/UD | 1304 | 378 | 300
YAEL-170-40/UD | 1736 | 378 | 600
YAEL-090-50/UD | 872 | 478 | 300
YAEL-130-50/UD | 1304 | 478 | 300
YAEL-170-50/UD | 1736 | 478 | 600
YAEL-130-60/UD | 1304 | 578 | 600
YAEL-170-60/UD | 1736 | 578 | 750

Single-layer version, right-hand:
YAER-130-40/UD | 1304 | 378 | 300
YAER-170-40/UD | 1736 | 378 | 600
YAER-090-50/UD | 872 | 478 | 300
YAER-130-50/UD | 1304 | 478 | 300
YAER-170-50/UD | 1736 | 478 | 600
YAER-130-60/UD | 1304 | 578 | 300
YAER-170-60/UD | 1736 | 578 | 750

Technical specifications

• Operation: Electric-only with factory-assembled heating element
• Control: Bluetooth connectivity and Zehnder Connect app (Android™ / iOS); local control knob and infrared remote with four temperature settings
• Timer function and predefined heating schedules
• Standby consumption: approximately 0.5 W
• Dry-run protection and open-window detection for energy savings
• Ready-to-plug design for quick installation
• Maximum surface temperature (chrome-plated version): 65 °C
• Multiple model variants (left/right header arrangement; single- and double-layer options)
• Available in numerous RAL/NCS and proprietary finishes (standard and trend palettes)
