Electric towel radiator VITALO BAR

501 w...750 w0...500 w751 w...1000 w

Product description

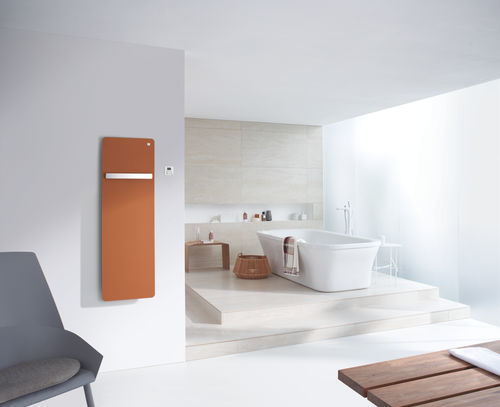

The Zehnder Vitalo Bar is an electric heated towel rail designed for bathrooms and washrooms where minimalist geometry and quick, efficient heating are required. Available as concealed electric variants (VIPE / VIPES), it combines a flat rectangular and circular profile with one or two chrome towel rails depending on height.

Benefits

• Efficient electric heating technology for rapid room and towel warming
• Extremely flat, geometric design suitable for contemporary interiors
• Reduced total weight for simplified transport and installation
• Distinctive aesthetic with selectable towel rail configurations
• Chrome side-access towel rail for easy hanging and sliding of towels
• Smooth surfaces allow straightforward cleaning and maintenance
• Short thermal response time for fast comfort
• Color-matched painted towel bars or separately ordered accessory bars in other colours (optional)

Electric operation

• Positionable control device with options for wall or base mounting
• Timer and daily/weekly programs for on-demand operation
• Open-window detection for energy-efficient operation
• User-friendly interface and concealed electric heating element for a clean appearance
• Delivered ready-to-plug for fast commissioning
• Compliant with the European Ecodesign Directive for improved energy performance
• Keylock for increased safety
• Low standby consumption (0.5 W)
• Flexible control placement: wall-mounted or base-mounted controller

Colour & finishes
Available in almost any colour and finish from the Zehnder colour chart, including many RAL/NCS and proprietary shades, and in natural anodised aluminium. Some surfaces are glossy (marked) and others matt. Minor colour deviations may occur between production series and screen displays.

Technical data — Electric-only operation (Painted version)
Model | H (mm) | L (mm) | LB (mm) | Power electric heating element (W)
VIPE-125-040/GD | 1250 | 400 | 350 | 350
VIPE-160-040/GD | 1570 | 400 | 350 | 500
VIPE-160-050/GD | 1570 | 500 | 450 | 500
VIPE-190-040/GD | 1890 | 400 | 350 | 500
VIPE-190-050/GD | 1890 | 500 | 450 | 750
VIPE-190-060/GD | 1890 | 600 | 550 | 1000
Note: H = height, L = length, LB = towel rail length. 75/65/20 = Nominal heat output according to EN 442.

Technical data — Electric-only operation (Anodised aluminium)
Model | H (mm) | L (mm) | LB (mm) | Power electric heating element (W)
VIPES-125-40/GD | 1250 | 400 | 350 | 350
VIPES-160-40/GD | 1570 | 400 | 350 | 350
VIPES-190-40/GD | 1890 | 400 | 350 | 500
Note: H = height, L = length, LB = towel rail length. 75/65/20 = Nominal heat output according to EN 442.

Technical specifications

• Product family: Zehnder Vitalo Bar (electric variants)
• Operation: Electric-only with concealed heating element
• Control: Positionable controller; wall or base mounting; timer; daily & weekly programs; keylock
• Stand-by consumption: 0.5 W
• Open-window detection for energy savings
• Delivered ready-to-plug for rapid installation
• Standards: Designed to comply with the European Ecodesign Directive
• Finishes: Painted (wide RAL/NCS and proprietary colours) and anodised aluminium
• Refer to model tables above for typical heights and electric power options
