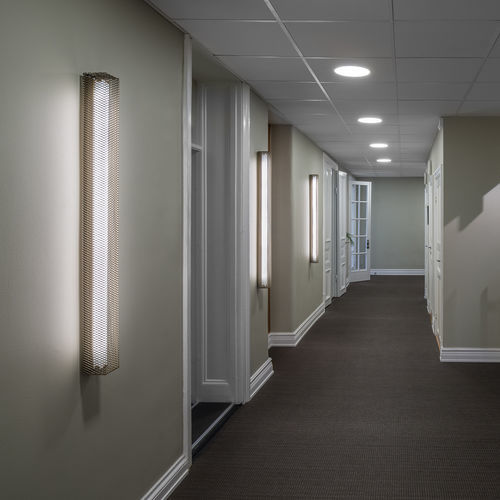

Contemporary wall light GRID indoorperforated metalperforated sheet metal
Add to favorites
Compare this product
Characteristics
- Style
- contemporary
- Interior/exterior use
- indoor
- Material
- perforated metal, perforated sheet metal, acrylic, opal
- Diffuser shape
- geometric, rectangular, square
- Type of support
- fixed
- Applications
- home, commercial
- Light source
- LED
- Protection class
- IP20
- Color
- golden, customizable color, yellow, orange
- Dimmable
- dimmable
- Designer
- not specified
- Other characteristics
- dimmable
- Height
96 mm
(4 in)- Length
1,250 mm
(49 in)- Power
Max.: 28 W
Min.: 28 W
- Luminous flux
Max.: 1,966 lm
Min.: 1,966 lm
- Color temperature
Max.: 4,000 K
Min.: 3,000 K
- Color rendering index (CRI)
Max.: 100 unit
Min.: 80 unit
Description
Product
Body in sheet metal with square perforations or in expanded metal. Surface with a raw finish and visible welds under a transparent varnish. Diffuser in opal acrylic.
LED info
System power: 28W. Luminaire luminous flux: 1966 lm (see product specification). CCT: 3000K (4000K on request). SDCM: 3. CRI: >80.
Installation
Surface-mounted wall installation.
Connection
Terminal block 3x4 mm2.
Classification
IP 20.
Design
Front Design 2012.
Standard colours
Available in standard finishes; other colours on request.
Product specification
The Grid series is produced from industry-standard sheet metal with different hole formations. Three patterns are available, with two perforation types in the standard finishes clear lacquered metal and transparent gold.
LED 1966LM/28W | Square holes | 8145-1-XX
LED 1966LM/28W | Square holes | 8145-1-XXHFF
LED 1966LM/28W | Expanded metal | 8146-1-XX
LED 1966LM/28W | Expanded metal | 8146-1-XXHFF
XX = -14 Yellow, -41 Orange, -76 Metal, -77 Gold. HFF = Dimmable with DALI, DSI, SwitchDim.
Technical specifications
Body in sheet metal with square perforations or in expanded metal. Surface with a raw finish and visible welds under a transparent varnish. Diffuser in opal acrylic.
LED info
System power: 28W. Luminaire luminous flux: 1966 lm (see product specification). CCT: 3000K (4000K on request). SDCM: 3. CRI: >80.
Installation
Surface-mounted wall installation.
Connection
Terminal block 3x4 mm2.
Classification
IP 20.
Design
Front Design 2012.
Standard colours
Available in standard finishes; other colours on request.
Product specification
The Grid series is produced from industry-standard sheet metal with different hole formations. Three patterns are available, with two perforation types in the standard finishes clear lacquered metal and transparent gold.
LED 1966LM/28W | Square holes | 8145-1-XX
LED 1966LM/28W | Square holes | 8145-1-XXHFF
LED 1966LM/28W | Expanded metal | 8146-1-XX
LED 1966LM/28W | Expanded metal | 8146-1-XXHFF
XX = -14 Yellow, -41 Orange, -76 Metal, -77 Gold. HFF = Dimmable with DALI, DSI, SwitchDim.
Technical specifications
- System power: 28W
- Luminaire luminous flux: 1966 lm
- CCT: 3000K (4000K on request)
- SDCM: 3
- CRI: >80
- Diffuser: opal acrylic
- Body: square perforated metal or expanded metal, raw finish with visible welds, transparent varnish
- Installation: surface-mounted wall
- Connection: terminal block 3x4 mm2
- IP rating: IP20
- Design: Front Design 2012
- Available colours: -14 Yellow, -41 Orange, -76 Metal, -77 Gold; other colours on request
- Model references: 8145-1-XX, 8145-1-XXHFF, 8146-1-XX, 8146-1-XXHFF
- Dimming: HFF = Dimmable with DALI, DSI, SwitchDim
