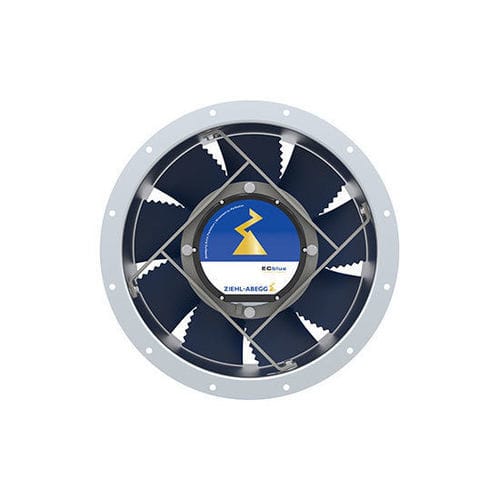

Axial fan MAXVENTOWLET

industrialgalvanised steelstainless steel

Overview
The MAXventowlet medium-pressure axial fan integrates ZIEHL-ABEGG's biomimetic blade geometry to deliver reduced acoustic emissions and a high performance density for industrial ventilation applications. The modular design supports blade diameters from 315 to 1,400 mm and offers multiple material and housing configurations to match site requirements.

Product specification
This modular, high-performance axial fan is configurable to customer specifications. The biomimetic blade design provides efficient airflow with reduced noise. Options include ZAmid® high-performance composite blades, alternative blade materials, short and long housings per Eurovent, and AC or EC (ECblue) motor technologies. The MAXventowlet range meets the current ErP Directive and is available in ATEX category 2 and 3 configurations. Performance: flow rates up to 144,500 m3/h and static pressures up to 2,200 Pa.

Properties & special features

• Reduced noise emissions through biomimetic blade geometry
• Factory-set blade angle combined with blade count for optimal operating-point matching
• Short and long housing options according to Eurovent (sizes 315–1,400 mm)
• Housing materials: galvanized steel, 304 or 316L stainless steel; optional coating or hot-dip galvanisation
• Dynamic balancing on two levels for smooth operation and durability
• ErP Directive compliant
• Designed for explosive atmospheres: zone 1 & 2 (gases) and zone 21 & 22 (dusts) per Directive 2014/34/EU

Motor concepts

• Internal rotor motors
• External rotor motors
• IEC, NEMA and other motor standards available on request
• ECblue technology with integrated, fan-tailored controller available

Explosion protected version (selected details)

• Available in 14 sizes (315–1,400 mm)
• Temperature class T4 / T125°C
• Equipment group IIB + H2 / IIIC
• Internal rotor motor (AC) option
• EPL: Gb / Gc / Db / Dc
• Zones: 1 / 2 / 21 / 22
• Motor ignition protection type: Ex db / Ex db eb
• Fan ignition protection type: Ex h (constructional safety “c”)
• Suitable ambient temperatures from -20/-60 up to +40/+60 °C depending on configuration
• Certificates: ATEX, IECEx

Technical specifications

• Series / Model: MAXventowlet
• Blade design: biomimetic, ZAmid® high-performance composite (light, corrosion-resistant)
• Sizes available: 315 mm to 1,400 mm (14 sizes)
• Max. flow rate: up to 144,500 m3/h
• Max. static pressure: up to 2,200 Pa
• Housing: galvanized steel, 304 or 316L stainless steel; optional coating or hot-dip galvanisation
• Housing lengths: short and long per Eurovent
• Balancing: dynamic balancing on two levels
• Motor technologies: AC internal rotor, EC (ECblue), external rotor; IEC, NEMA and others on request
• Explosion protection: ATEX category 2 and 3; options for zones 1/2/21/22; EPL Gb/Gc/Db/Dc
• Temperature classes and ambient ranges: T4 / T125°C; operation from -20/-60 to +40/+60°C depending on configuration
• Compliance / Certificates: ErP Directive compliant; ATEX and IECEx available; additional certificates on request
