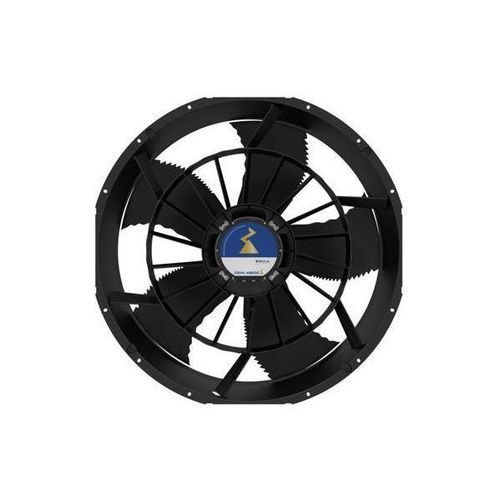

Axial fan ZAPLUS

ductmobileindustrial

Overview
The ZAplus housing (nominal diameters 450–1,000 mm) is an injection-moulded nozzle housing developed with CFD to optimise airflow and acoustics. The system combines a full nozzle geometry with biomimetic FE2owlet/FE3owlet fan blades, integrated guide vanes and a short diffuser on the pressure side to improve pressure capability and reduce noise. ZAplus can be fitted as a retrofit to existing systems to increase air output and reduce operating costs while minimising sound emissions.

Product specification
ZAplus is a modular fan housing system comprising an optimised full nozzle with guide vanes, motor suspension and a short diffuser, available with optional high-end diffusor (ZAplus+). The housing is produced by plastic injection moulding; the nozzle is made of a high-performance composite. Fan blades are available in biomimetic FE2owlet and FE3owlet designs. Units are offered with AC or ECblue (external rotor with integrated controller) motor technology and allow fully speed-controllable airflow for industrial HVAC, refrigeration, system and energy technologies.

Properties & special features

• Engineered ventilation system with performance-optimised nozzle geometry
• Low operating costs from aerodynamic optimisation and quiet biomimetic blade design
• Fully speed-controllable airflow for high operational flexibility
• Corrosion-resistant nozzle made of high-performance composite material
• Smooth operation and long service life due to two-level dynamic balancing
• Increased air handling capacity with optional high-end diffusor (ZAplus+)
• Reduced handling time: delivered without additional packaging
• Compliant with current ErP Directive
• Multiple international certifications (VDE, UL, CCC, CE, AMCA test rig certificates, ISO quality)

Motor concepts

• External rotor motors
• ECblue technology: external rotor with integrated controller matched to the fan
• AC motor technology

Applications

• Power plants
• Transformer cooling
• Wind energy systems
• Chillers
• Heat pumps
• Data centres
• Cold chain logistics
• Cooling towers
• Process and industrial refrigeration
• Compressors
• Railway technology
• Containers and mobile applications
• Food industry processes (noodles, pasta, coffee, tea, spices, tobacco, fruit, vegetables, flowers, animal/fish/seafood)

Technical specifications

• Housing (nominal diameters): 450 mm, 500 mm, 560 mm, 630 mm, 710 mm, 800 mm, 910 mm, 1000 mm
• Manufacturing: injection-moulded plastic housing; nozzle in high-performance composite material
• Compatible fan blade designs: FE2owlet, FE3owlet (biomimetic)
• Integrated guide vanes and short pressure-side diffuser; optional high-end diffusor (ZAplus+)
• Balance: dynamic balancing on two levels
• Motor technologies: AC and ECblue (external rotor; ECblue with integrated controller)
• Airflow range (examples across series): approx. 5,070 m³/h to 44,592 m³/h (model-dependent)
• Pressure capability (examples across series): approx. 66 Pa to 639 Pa (model-dependent)
• Phase options: single-phase (1 ~) and three-phase (3 ~)
• Voltage options (examples): 100 V, 130 V, 230 V, 265 V, 400 V, 460 V
• Frequency: 50 Hz and 60 Hz
• Fan outlet designs: square full bell mouth, round full bell mouth, with or without guard grille
• ErP compliant; multiple international certifications (VDE, UL, CCC, CE, AMCA test rig certificates, ISO)
