Lighting control module ENERGY METER
temperatureDIN railIP

lighting control module
lighting control module
Add to favorites
Compare this product


Characteristics

Type
lighting, temperature
Installation
DIN rail
Network
IP
Location
indoor
Market
commercial

Description

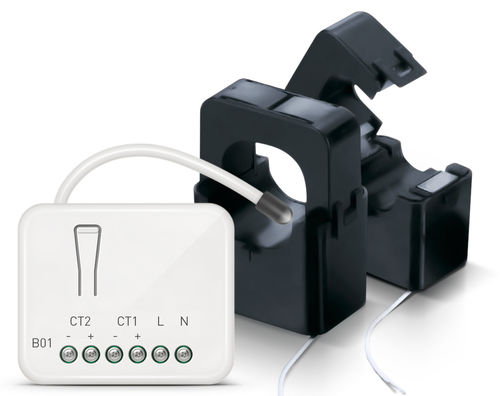

Zipato Micromodule Energy Meter monitors total electricity consumption of connected appliances and reports it to Zipato or any other Z-Wave enabled controller in real time. Small and compact size allows easy installation in majority of electricity distribution boxes. It sup- ports two loads up to 6000W each (@ 120V). FEATURES Slim, compact remote Z-Wave module measures power parameters of connected device Dual power meter function Amper meter clamp are included in the box Instant power wattage and Accumulated power consumption KWh report Maximum current measure 60A New Z-Wave 500 series Very low power consumption Over-the-air firmware update Easy installation TECHNICAL SPECIFICATION PROTOCOL: Z-Wave Plus OPERATING CONDITIONS: OPERATING VOLTAGE: 230V/50MHz MAXIMUM LOAD: 6000W X 2 @ 120V OPERATION TEMPERATURE: 0°C ~ 40°C RANGE: Minimum 40 meters indoor 70 meters outdoor DIMENSIONS Micromodule: 47 x 16 x 40 mm Amper clamp: 29 x 30 x 43 mm Package: 127 x 115 x 54 mm WEIGHT Micromodule: 21g Amper clamp: 86g Package weight: 137,3g REGULATION EMC: FCC, CE FREQUENCY ph-pab01.eu 868.42 MHz (EU) WARRANTY 1 year standard
