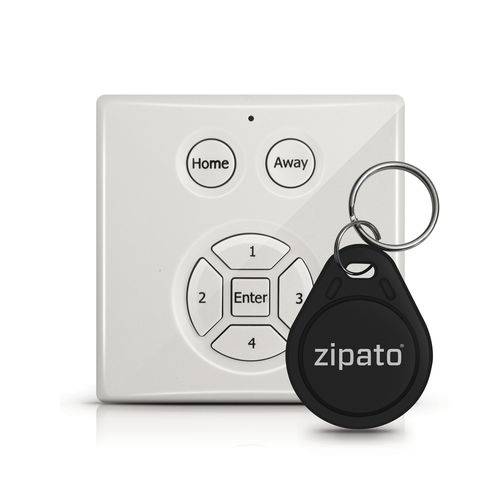

RFID card reader MINI KEYPAD

for access control

Zipato Mini RFID Keypad combines RFID and Z-Wave protocol for access control purposes. The user can identify themselves either by using manual code buttons on the numeric keypad, or by using a RFID key fob. The keypad fully supports Zipato automated security systems but also works with other Z-Wave enabled networks. “Home” and “Away” buttons allow the arming and disarming of security system or running any automation scenario. 1 RFID tag included, up to 20 codes supported. FEATURES Arms or disarms security system User identification over numeric keypad or RFID key fobs (1 included) Can be used with any Z-Wave network/controller, regardless of the manufacturer Very low power consumption Low power indication Low battery auto report Easy installation and relocation TECHNICAL SPECIFICATION PROTOCOL Z-Wave, RFID Tag-it ISO15693 ISO18000-3 OPERATING CONDITIONS: OPERATING TEMPERATURE: 10°C ~ 40°C OPERATING HUMIDITY: 30% to 80% STORAGE TEMPERATURE: -5°C ~ 65°C STORAGE HUMIDITY: 10% to 70% RANGE Up to 30 meters line of sight (for indoor use only) DIMENSIONS DEVICE DIMENSIONS 17 x 62 x 62 mm DEVICE WEIGHT 45g PACKAGE DIMENSIONS 122 x x 95 x 35 mm PACKAGE WEIGHT 150g REGULATION EMC: FCC, CE FREQUENCY wt-rfid.eu 868.42 MHz (EU) POWER: 2 x AA 1,5V batteries WARRANTY 1 year standard
