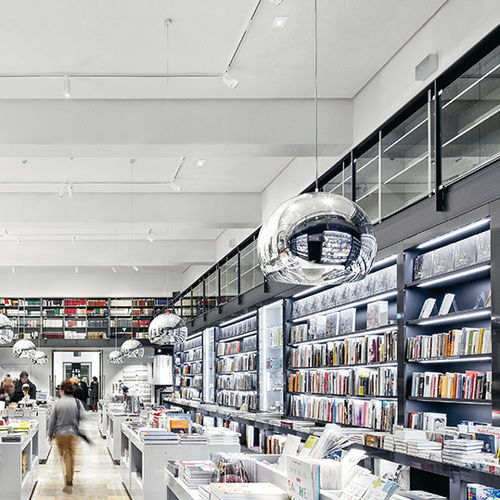

Spherical pendant luminaire
Light effect: semi-transparent coating creates a sense of plasticity and depth
Chrome ceiling rose, matt
Protection class I
Modular, high-quality optical unit consisting of reflector and LED light chamber
Specular reflector of aluminised PC, highly specular, iridescence-free
Sphere 170 made of mouth-blown glass with semi-transparent reflective chrome or bronze coating
Polycarbonate sphere 250/500 with semitransparent reflective chrome or bronze coating
With spot and flood beam pattern
Passive thermal management achieved by optimum design of luminaire housing
UVA-free and IR-free light
50000 h service life at 80 % luminous flux
Total length of luminaire, including transparent pendant cable, approx. 3000 mm
Electronic ballast integrated in ceiling rose
3-pole connection terminal with plug connection, 5-pole ( dimmable Dali only)
Dimming of illuminance 1–100 % via dimmbable Dali only
Mains voltage: 220–240 V / 50/60 Hz
Please go to the main product name in the ONLINE catalog to find the latest power consumption figures based on continuous improvements in efficiency
