Recessed downlight MIREL EVOLUTION MINI
surface mountedLEDsquare

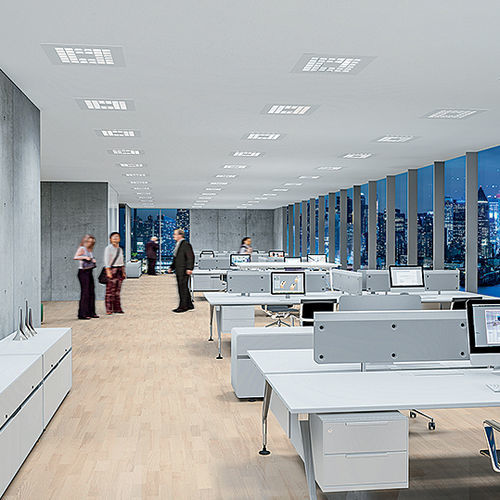

Recessed downlight - MIREL EVOLUTION MINI - ZUMTOBEL - surface mounted / LED / square
Recessed downlight - MIREL EVOLUTION MINI - ZUMTOBEL - surface mounted / LED / square
Recessed downlight - MIREL EVOLUTION MINI - ZUMTOBEL - surface mounted / LED / square - image - 2
Recessed downlight - MIREL EVOLUTION MINI - ZUMTOBEL - surface mounted / LED / square - image - 3
Recessed downlight - MIREL EVOLUTION MINI - ZUMTOBEL - surface mounted / LED / square - image - 4
Recessed downlight - MIREL EVOLUTION MINI - ZUMTOBEL - surface mounted / LED / square - image - 5
Recessed downlight - MIREL EVOLUTION MINI - ZUMTOBEL - surface mounted / LED / square - image - 6
Recessed downlight - MIREL EVOLUTION MINI - ZUMTOBEL - surface mounted / LED / square - image - 7
Recessed downlight - MIREL EVOLUTION MINI - ZUMTOBEL - surface mounted / LED / square - image - 8
Recessed downlight - MIREL EVOLUTION MINI - ZUMTOBEL - surface mounted / LED / square - image - 9
Add to favorites
Compare this product

Characteristics

Type
recessed, surface mounted
Light source
LED
Shape
square
Protection class
IP20, IP40
Interior/exterior use
indoor
Applications
for office
Material
polycarbonate, coated
Color
white, black
Dimmable
dimmable
Style
contemporary
Number of lights
multiple
Other characteristics
modular
Height

63 mm
(2 in)

Length

230 mm
(9 in)

Width

230 mm
(9 in)

Power

10 W

Luminous flux

120 lm

Color temperature

3,000 K, 4,000 K

Color rendering index (CRI)

80 unit

Description

LED surface-mounted ceiling luminaire with lens optic Housing made of white powder-coated sheet steel Light guided via square lens optic for maximum luminaire efficiency, perfect glare reduction and batwing light distribution Colour temperature 4000 K (intermediate) and 3000 K (warm white) LED service life: 50000 h before luminous flux is reduced to 85 % of the initial value High luminaire efficiency of up to 120 lm/W Standard-compliant workstation illumination with UGR <19 and L65 80 for office applications Chromaticity tolerance between multiple luminaires of up to 3 MacAdam ellipses Low sensitivity to soiling and simple cleaning Luminaire pre-wired using halogen-free leads Luminaire available in black via myMIREL EVOLUTION: Because of the injection moulding process of black polycarbonate, cloudy effects on the cover are unavoidable (gloves needed to be used), Power consumption increases by up to 20%
