Ombrelone retangular CYGNUS DUO

em consolaem tecidoem acrílico

Product overview

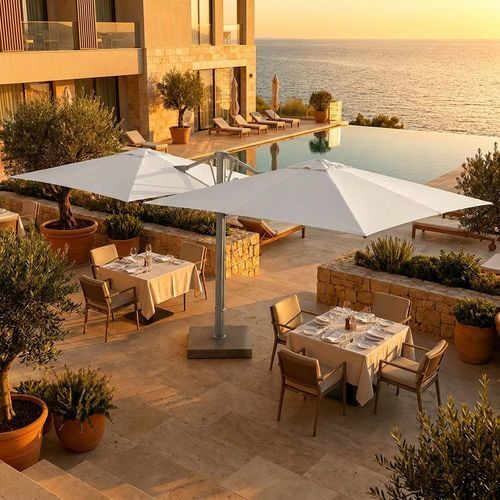

Cygnus Duo is the double-arm cantilever parasol that shades where two separate parasols would get in the way: eighteen square metres of continuous shade on a single pole. Ideal for business lunches on terraces, hotel lounges during aperitivo, and commercial entrances.

Main features

• Independent gas piston: one mechanism per arm — open only what you need.
• 360° pole rotation: a single lever at the base rotates the central pole; both canopies follow the sun together.
• Acrishade 260 gsm fabric: solution-dyed acrylic, UPF 50+, water-repellent, with an airvent per canopy to release wind pressure.
• Pole 75×124 mm: reinforced cross-section designed for double-cantilever loads.
• Two canopies on one upright: 3×6 m total coverage (two adjacent panels), no poles between guests.

Performance & design

• Commercial-grade aluminium frame with 8 ribs per canopy (16 ribs total).
• Perimeter reinforced stitching and Velcro closures to keep canopies tidy when closed.
• Coordinated finishes (frame and fabric combinations selected by Maanta Style Centre).

What you receive

• Complete Cygnus Duo: central pole (75×124 mm), two cantilever arms, two Acrishade canopies pre-mounted on ribs, and mounting accessories.
• Packaging: 1 piece per package, packaged dimensions 269 × 78 × 22 cm, volume 0.46 m³.

Compatibility & accessories

• Compatible anchor solutions and bases (not included): concrete anchor plate, wooden-deck anchor plate, in-ground anchor plate, or suitably heavy fillable parasol base. Minimum recommended ballast or fixed anchoring for safe use in windy conditions.
• Optional protective cover available (shaped cover for 3×6m Duo; reinforced polyester with zip and installation rod).

Usage recommendations

• Wind: recommended for use up to approx. 25 km/h. Close both arms when prolonged heavy rain or winds above recommendation are forecast.
• Installation: due to weight (pole >50 kg gross) and assembly steps, two people are recommended for first installation.

Caractéristiques / spécifications techniques

• Denomination commerciale: Cygnus Duo
• Available sizes: 3×6 m (total coverage 18 m²; two canopies 9 m² each)
• Coverage width: 300 × 600 cm
• Opening: push-open one-stop, gas piston assisted, independent for each arm
• Pole (central upright): 75 × 124 mm (reinforced section)
• Ribs: 16 × 28 × 1.2 mm total (8 ribs per canopy)
• Fabric: Acrishade 260 g/m² — solution-dyed acrylic, UPF 50+, water-repellent; one airvent per canopy (no flap)
• Frame: commercial-grade aluminium, coordinated finishes (Anthracite · Matt Anodizing)
• Total height when open: 260 cm; usable headroom beneath canopies: 210 cm; height when closed: approx. 50 cm
• Net weight: 50.2 kg · Gross weight (packaged): ~60 kg
• Wind resistance: up to 25 km/h (minimum recommended base 100 kg ballast or fixed anchoring)
• Warranty: 7 years on frame · 3 years on fabric
• Package contents: complete Duo parasol (pole, two arms, two canopies, mounting accessories). Bases and some fixings sold separately.
