900 Great Hinged Vision
Reference: 6890-44
Approved Standard INTO 13229
characteristics
Power: 18 kw
Output: 65.1%
Length of logs: 70 cm
Diameter of tube: 200 mm
Dimensions: H: 1158 mm lg: 900 mm teacher: 490 mm
Guarantee: 5 years
Continuous fire
Weight: 215 kg
|
|
840 Vertical
Reference: 6550-44
Approved Standard INTO 13229
characteristics
Power: 16 kw
Output: 71,40%
Length of logs: 50 cm
Diameter of tube: 230 mm
Dimensions: H: 1205 mm lg: 585 mm teacher: 495 mm
Guarantee: 5 years
Continuous fire
Weight: 188 kg
|
|
850 Prismatic
REF : 6385-44
Approved Standard INTO 13229
characteristics
Power: 16 kw
Output: 71,40%
Length of logs: 64 cm
Diameter of tube: 200 mm
Dimensions: H: 940 mm lg: 827 mm teacher: 514 mm
Guarantee: 5 years
Continuous fire
Weight: 167 kg
Version Doubles Réf Face: 6388-44
Option Réf careenage: 6954-50
|
|
Forma 120
Front fireplace stove in steel with fire box in Alutec®. It is very versatile and can be positioned at a 45ŗ angle or against a wall.
The height of the door (47 cm) provides an excellent view of the flames in their entirety. It is suitable for heating rooms of at least
50 m³ and is able to heat up to 250 m³ with insulation in accordance with the law, thanks to its 10,000 kcal/h power. Available
with natural ventilation. Upon request, a 480 m³/h forced ventilation kit is available for carrying the heat to other rooms, reducing
the temperature difference and thus obtaining environmental well-being.
Overall thermal power (kW/Kcal) 11,5/10.000
Fuel legna/tronchetti - firewood/logs
Hourly consumption (kg) 3,6/2,8
Heatable volume (m³) 250/40 285/35 330/30
Minimum room volume (m³) 50
Diameter of smoke outlet pipe (cm) 25
Weight (kg) 250
External air intake (cm²) 200÷360
Flue pipe section (H= 3,5-5 m) (cm) 30x30 or Ų30
Flue pipe section (H= 5 and over m) (cm) 25x25 or Ų25
Fan capacity (optional) (m³/h) 480 (bocca libera) - 480 (free mouth)
Power consumption (W) 95
Noise production (dB) 44
DIN 18895 approval - |
|

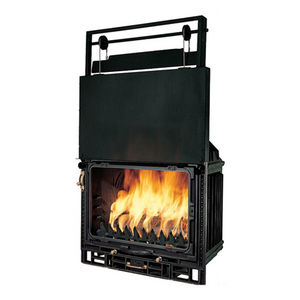

| Stūv 21 are hearths with a retractable lifting door -or "guillotine door". They are designed to be integrated into the building. the glass door slides upwards and disappears behind the masonry ; the hearth then operates as an open fire. with the glass door lowered, it operates with an excellent heat output in complete safety ; its exceptionally large glass door provides a perfect view of the fire. On the picture : Stūv 21/85 with white cladding (ref : HAB2185SF4) |
|
There is nothing to compare to thestūv 30-in insert fireplace.
It works as an open fire, as a glass door fire and as a slow-burner according to the family's activities.It is most probably one of the most efficient inserts on the market. |
|
800 Great Vision Doubles Face
Approved Standard INTO 13229
Ref : 6282-44
characteristics
Power: 12 kw
Output: 58.6%
Length of logs: 61 cm
Diameter of tube: 200 mm
Dimensions: H: 950 mm lg: 795 mm teacher: 460 mm
Guarantee: 5 years
Continuous fire
Weight: 164 kg
|
|
| Stūv 21 are hearths with a retractable lifting door -or "guillotine door". They are designed to be integrated into the building. the glass door slides upwards and disappears behind the masonry ; the hearth then operates as an open fire. with the glass door lowered, it operates with an excellent heat output in complete safety ; its exceptionally large glass door provides a perfect view of the fire. On the picture : Stūv 21/85 DF (double sided) |
|
| Stūv 21 are hearths with a retractable lifting door -or "guillotine door". They are designed to be integrated into the building. the glass door slides upwards and disappears behind the masonry ; the hearth then operates as an open fire. with the glass door lowered, it operates with an excellent heat output in complete safety ; its exceptionally large glass door provides a perfect view of the fire. On the picture : Stūv 21/65C with white front panel (ref : HAB2165CSF3). |
|
Incredible heating power resides in the Passion fireplace.
Resolutely created for your safety, its unique technology ensures you well-being and safety.
Optimum combustion thanks to a double walled cast iron back fire plate and reverse draft.
Maximum heat transfer surface to obtain outstanding heating performance.
Ideal fireplace for very large volumes.
Safe operation.
|
|
Stylish lines and a smooth design make this silk-screen printed glass faēade particularly aesthetic...
Air deflectors and (patented) smoke box with automatic damper.
Refractory lining allowing a combustion temperature increase as well as a faster evaporation of the wood moisture.
Double convection air inlet. Triple glazing.
Thanks to the air blowers : forced hot air with a quicker heat sensation and at a greater distance.
Large integrated ash drawer.
|
|
The panoramic Carina®
The generously sized pane offers a panoramic view that draws the eye.
Panoramic view of the flames.
Easy to use: top retractable door
Easy to maintain: secondary air supply flush with the glass, to create an air sweeping for a cleaner glazing.
Combustion performance thanks to patented insulated air circuits providing optimally pre-heated air.
Longevity and design: inside of the fireplace out of smooth refractory bricks with integrated firedogs, smooth shape and high-level finish.
|
|
The Stella 2
The Stella 2 fireplace will ensure you well-being and safety, with an incomparable fire viewing.
Optimum efficiency: from 73 to 81%, 10 hour heating time with a single load of wood.
Adjustable power, Visioceram® glazing and inside walls in firebricks for cleaner combustion and undisturbed fire viewing.
Possibility of heating several rooms thanks to the forced air system (only with the FOND'ice technology).
Decorative glass frames available in different colours (see the Fireplace trims section). |
|
ECOPALEX 64 FRONT
Small "clean combustion" insertion fireplace with cast iron interior. The ventilated version features 2 x 10 W axial fans, wiring, plug and probe for automatic operation (when the fire goes out the fans stop on their own). With new combustion chamber, window cleaning air adjustment, pyroceram door, log guard standard
|
|

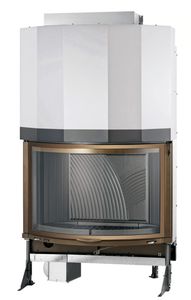

The curved Carina®
The soft, but generous shape of the curved Carina fireplace offers a unique view of the fire.
Wide screen view of the flames, 16:9 type.
Easy to use: top retractable door.
Easy to maintain: secondary air supply flush with the glass, to create an air sweeping for a cleaner glazing.
Combustion performance thanks to patented insulated air circuits providing optimally pre-heated air.
Longevity and design: inside of the fireplace out of smooth refractory bricks with integrated firedogs, smooth shape and high-level finish. |
|
See the fire from both sides of your fireplace : the Stella 2 double-sided fireplace allows you to do so while maintaining exceptional power.
Exceptional performance for this type of fireplace, with a long heating time.
Visioceram® glazing for cleaner combustion and and undisturbed fire viewing.
Easy to use: two retractable doors.
Patented comfort: horizontal swinging doors.
Fine tuning control of the combustion rates.
Ash holder for more cleanliness during operation of the appliance.
|
|
"Le Foyer Berman" is an open fire place which offer the transformation to a current fire stove by a manuel falling over the combustible in a heat resistance container. All is equiped with high output warm recuperator.
"Le Foyer Berman" is realised in noble materials as heat resistance stealth, "Chamotte bricks, castiron,...
"Le Foyer Berman" allows the realisation of every fire place models :
style, monumental, traditionnal, design, actual, etc...
By its conception, le Foyer Berman can be install in old existing fire place, where tradition is associated to an efficient and simple using.
The advantages of "Le Foyer Berman"
The open fire place sensations
The esthetic of a traditionnal chemny
The security and output of a current fire stove
A great and performant heating system
Confort and economical through the recuperator
Can be install in every type of fire place
EC 16
15,5kw NF D35 376
maxi height 1850 mm
larger 810 mm
depth 690 mm
weight 260kg
|
|
Right hearth
of an interior width
of 64 cm with 1,1 mc |
|
Ideal to equip with splendid fireplaces to install as well in the angle of a part as on a long side.
The roundness of its door enables him to radiate with 180°. |
|
panoramic frontal range
the central hearth
Ų 760 or 950 mm |
|
A beautiful volume resulting from a simple geometry. (perhaps delivered with or without plate foyčre)
Dimension of the hearth: 71 X 71
|
|
innovation
vision of angle to the format 16/9e |
|
| Prefabricated fire supplied in a single pack, complete with every component ready for simple and rapid assembly. The structure in high resistance expanded clay and the firebox in cast iron make a functional product with good thermal efficiency. This fire can be installed in a corner or on a flat wall. Fire with two semi-open sides. |
|
Combi Aer System is a "combined" fireplace with controlled and prolonged combustion; it is the heart of a real high-efficiency heating system that heats a home of up to 150 m2 with humidified hot air ducted to the various rooms, using the preferred fuel: wood or gas.
Using wood offers a saving of 58% (*) on the cost of the fuel, in addition to the appeal of the fire; with gas the comfort of automatic operation, like every boiler, is assured. It has a built-in manually-fed humidifier which prevents physiological problems such as dry throat, sore throat, migraine, various allergies and excessive dust caused by a too dry environment. a truly unique product. A few drops of balsamic and fragrant essences can be added to the humidifier water.
Domestic hot water at zero cost can be had by fitting (optional) the Boiler Hood. Ideal where heating must be rapid and safe, especially in second homes, it can work as a single heat source to heat the house or integrating the existing system. |
|
Mono Aer System only uses gas and can heat a medium-sized apartment, ducting humidified hot air. It is used alone or combined with the existing system; wood is not needed (but is simulated in a very realistic way), therefore it does not require maintenance.
Just use the thermostat to obtain the required temperature; in summer you can enjoy the coolness of ventilated air. It is preassembled and therefore ready to use. Like every Jolly-Mec product, it requires little attention but provides a big service. |
|
"Le Foyer Berman" is an open fire place which offer the transformation to a current fire stove by a manuel falling over the combustible in a heat resistance container. All is equiped with high output warm recuperator.
"Le Foyer Berman" is realised in noble materials as heat resistance stealth, "Chamotte bricks, castiron,...
"Le Foyer Berman" allows the realisation of every fire place models :
style, monumental, traditionnal, design, actual, etc...
By its conception, le Foyer Berman can be install in old existing fire place, where tradition is associated to an efficient and simple using.
The advantages of "Le Foyer Berman"
The open fire place sensations
The esthetic of a traditionnal chemny
The security and output of a current fire stove
A great and performant heating system
Confort and economical through the recuperator
Can be install in every type of fire place
EC 16SR
15,5kw NF D35 376
maxi height 1850 mm
larger 810 mm
depth 690 mm
weight 210kg
|
|
| Prefabricated fire supplied in a single pack, complete with every component ready for simple and rapid assembly. The structure in high resistance expanded clay and the firebox in cast iron make a functional product with good thermal efficiency. This fire can be installed in a corner or on a flat wall. Fire with one open side reversible right or left. |
|
|
|
