closed wood hearth / 1-sided / cast iron
VISIO 8

Add to MyArchiExpo favorites
Compare this product Don’t compare this product

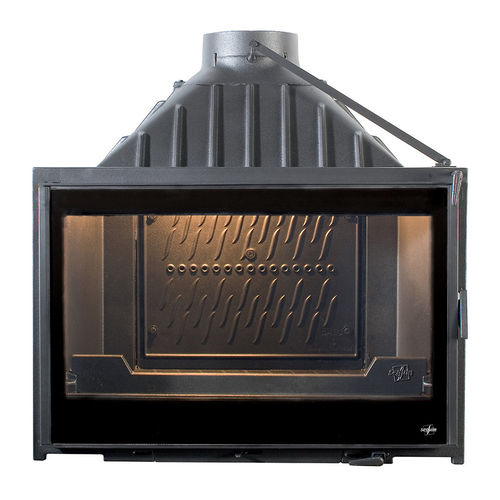

closed wood hearth closed wood hearth - VISIO 8
{{requestButtons}}

Characteristics

  • Fuel:

    wood

  • Type:

    1-sided

  • Material:

    cast iron

Description

Technical information
Générales
-Smoke outlet : Ø200 mm
-Weight : 169 kg version de base
-Size logs : jusqu'à 65 cm
-In compliance with : EN 13229
-Size : 80 cm

Régulation manuelle
-Nominal output : 11 kW
-Maximum output : 19 kW (indicatif)
-CO Rate : 0,09%
-Particles emission (mg/Nm3) : 32 mg/Nm3
-Efficiency : 75,0%

- Damper: with adjustable sealing - Swing-door: the door is blocked when the damper is closed - Lift door : the damper automatically opens at the door opening.
Options : - Lift door - Convector - Air distribution (double combustion included) - Adapter for double combustion connection Ref : A0210 - Adapter for air distribution connection Ref : A0211
