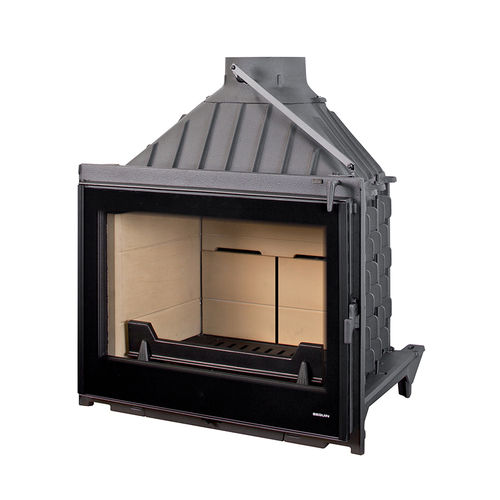

Closed wood hearth EUROPA 7 EVOLUTION PLUS

1-sidedcast iron

Technical information Générales Smoke outlet : Ø200 mm Weight : 205 kg Size logs : jusqu’à 45 cm In compliance with : EN 13229 Size : 70 cm Régulation manuelle Nominal output : 11 kW ou 5,5 kW CO Rate : 0,061% ou 0,154% Particles emission (mg/Nm3) : 32 mg/Nm3 ou 41 mg/Nm3 Efficiency : 77,4% ou 76,5% - Damper: with adjustable sealing - Swing-door: the door is blocked when the damper is closed - Lift door : the damper automatically opens at the door opening. Options : - Lift door - Convector - cast iron door or black screen printed glass - Air distribution (double combustion included) - Adapter for double combustion connection Ref : A0210 - Adapter for air distribution connection Ref : A0211
