The Gira InfoTerminal Touch from the Gira Instabus KNX/EIB system is used for central switching of the intelligent electrical installation and provides information on the status of all the building technology quickly and in an uncomplicated way. It is especially convenient to use thanks to the 5.7" TFT touch display. By touching the screen, functions such as switching, dimming and blind control can be executed, light scenes can be saved and called up and a variety of bus functions can be linked with ease. A time clock function is also included. The user menu is freely definable. Up to 50 menus with 8 lines each or 25 menus with 16 lines can be programmed. Gira InfoTerminal Touch can be installed either horizontally or vertically
|
|
|
|
|
|
InfoTRAX
InfoTRAX is a multifunctional terminal designed for all applications where an easy interaction of the workforce with the company Information System is required, and, it is not the privilege of only those with a PC on their desk.
Technical specifications:
Display
- Display: TFT 10,4" - 640x480 pixels - 65.000 colors
- Touch screen: Touch Screen resistive type
Integrated RFID Readers
Dual RFID 125KHz
Single Legic reader
Biometric reader: capacitive sensor (optional)
Communication Ports
- 1 Ethernet 10/100, PoE A&B
- 2 serial channels RS485 - RS232 -RS232 opto
- 1 serial channel configurabile RS485 o RS232
- 2 HOST USB 1.1
- WiFi 802.11 b/g (optional)
- GSM/GPRS (optional)
- SD/SDHC/MMC
Input/Output
1 x relay 2A 60V N.O. + N.C
2 x relay 3A 60V N.O.
4 x digital inputs opto-coupled
Internal tamper sensor
Power Supply
from 9 to 48 VDC
PoE IEEE 802.3af compliant
Internal batteries for 30 minutes operating without external power source
Internal 230 VAC (optional)
Physical Characteristics
- Casing: ABS V0, auto-estinguish
- Dimensions: 313 x 214 x 72 mm (HxLxP)
- Weight: 2,2 Kg
Audio & Video
- Speaker: Speaker mono
CPU
- ARM PXA270 312MHz
for further information: www.axesstmc.com
|
|
|
This operating panel includes a PC and the controls are on a colour Touch-Screen: it gives a touch of flair to the whole system. The TFTmatrix-colour high-definition screen displays the details of every spot of the wiring referring to every moment of the day and a specific page stores all the events happened during the day, giving the exact time. The alarm status can be checked, together with the status of the wiring. It is also possible to schedule automatic operations and to recall all the events that took place during the user's absence as messages on screen. This panel is suitable to be installed in CAN-BUS and RS-485 technology systems and therefore to share information with smart remote systems.
|
|
ambientoVGA and ambientomuraVGA the existing systems extend 15 " and 19 " as pure Touch display in the sizes in the graceful designed Design of the ambiento series.
The Touch display is outstanding suitable for the combination with the computer box logico, which can be used as particularly space-saving solution.
|
|
ambiento19VGA, resistive touch
with safety glass,
antireflection coated.
19" TFT, 1280x1024, 270 cd/m²
|
|
ambiento15, capacitive real-glass
touch with safety glass,
antireflection coated.
15" TFT, 1024x768, 250 cd/m²
|
|
ambiento19, capacitive real-glass touch with safety glass, antireflection coated.
19" TFT, 1280x1024, 270 cd/m²
|
|
|
The KT01 is a touchscreen interface for Comfort. It has a backlit black and white LCD which acts as a keypad and is able to display zone and alarm information from Comfort. It includes a speaker and microphone to record and announce voice messages, as well as an infrared receiver to activate any Response in a similar to KP02 and KP04. The LCD display can be set to rotate 180 o to allow for the choice of the user to have the IR receiver positioned above or below the LCD. The graphics and icons can be customised to indicate lighting, airconditioning, heating, Audio-Visual equipment or any home appliance. Each button or icon can be programmed to activate any Response in Comfort, and can also show the real time status of the device.
|
|

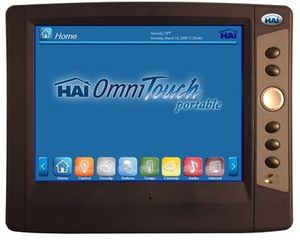

The OmniTouch 10p Touchscreen is a portable 10.4 inch Ethernet based Wi-Fi Touchscreen. The homewoner can carry it around the house or keep it in a charging docking cradle on a table for easy access to manage the home's lighting, temperatures, A/V equipment, and more.
The OmniTouch 10p comes standard with HAI's latest Touchscreen software, called HAI OmniTouch Pro. However, its interface is fully customizable using HAI Automation Studio software (HAI Part Number 1126). HAI Automation Studio allows the dealer to develop a more vivid, user-friendly graphic interface based upon the homeowner's lifestyle and interests.
Customizations can include adding your dealer logo and contact information or customizing screens to suit each individual room. You may add a floor plan graphic to the Touchscreen interface, and set up buttons that will open specific websites.
|
|
Home-Icon from Futronix
Complete lighting control - with just one touch of the Home-Icon® TFT Color Touch Screen!
The Home-Icon Color Touch Screen is a programmable interface used to integrate individual lighting control equipment throughout any residence - or a building of any size.
Simply set up your lighting the way you want it for any occasion or atmosphere - save your settings - and with a single touch of the Home-Icon screen you can recreate exactly that lighting whenever you wish. For even more convenience, use the 24-hour / 7-day timer to program multiple events in advance to enhance your lifestyle and increase your security.
Home-Icon combines flexibility in setting up all features with ease of operation. Enhancing user convenience, the Home-Icon unit can be programmed to control most kinds of home automation equipment as well.
|
|
The ambientomura scores with its ultra-flat design. As it is a slight built-in touchpanel which can be mounted horizontally or vertically, it can be integrated even in rooms with limited proportions.
The design effect is emphasised by the aluminium applications. In combination with its black coloured surface, the ambientomura can be adapted to any interior.
|
|
DIVUS offers with the product family DIVUSDOMUS various products.
With DIVUSDOMUS PCtouch you will have all advantages of the DIVUSDOMUS product range and the boundaryless freedom to integrate your own software ideas.
With the operating system XPembedded you will have all features of an embedded System and we have taken care for a minimum of storage volume for a system which is fast, secure and robust. Your visualization and control application for the building and facilities will be save.
All day, all night, the whole year!
Important specifications of XPembedded we support on demand.
|
|
With the realtime operating system Microsoft Windows CE we offer PC based products for the building and industrial automation. With this technology occurs a reliable and stabilised real time platform for various applications.
With DIVUSDOMUS PCtouch and Windows CE we offer products for the use as a WEB client and Thin client.
In combination with CE compatible visualisation software, Windows server application or WEB based visualisation tools you will have a optimized platform - fanless, silent and temperature protected.
|
|
- Aesthetically pleasing, modern design
- High-contrast, color touchscreen QVGA display
- Prominently displayed FAP (Fire/Auxiliary/Panic) keys
- Intuitive LED indication of security system status
- Compatible with PC1864, PC1832 and PC1616 control panels
- Info button leads to Help screens
- Available in English and French
- Approval Listings: Not CE Listed, FCC/IC
|
|
SMARTtouch Panel
freely programmable EIB touch display as room-integrated controlling, signalling and regulating unit. For displaying and operating up to 210 EIB standard functions (switching, dimming, blind control, showing readings etc.), with scene function, macro reco
|
|
The graphics button pad that controls all the automated systems in the home or office. With AT Home there is no need for a set of different switches in every room to control different functions. Zonepad allows you to control them all — air-conditioning, electrical appliances, lighting, window blinds, awnings and curtains, audio and security — separately for each room. Also by bringing all the switches together into one unit, the aesthetics of the room are also greatly enhanced.
Unlike conventional buttons, Zonepad has a modern design with an interface that uses easily recognisable icons. And for even more convenience, a Zonepad can be installed in every room. Even when users are away from home, they can control all the functions over the Internet or from a mobile phone. Zonepad makes life more convenient, makes rooms more attractive and saves space.
|
|
A sophisticated screen integrating all the functions
Graphicpad is a stylishly designed screen for controlling the automated systems in all the rooms from a single place in the home. Its features include the capacity to be integrated with video answer phone and thermostat systems. Add to this all the convenience of a dynamic, intuitive, easy-to-use graphic interface to control all the functionalities.
Graphicpad Includes all the same functions as the Zonepad. plus a set of advanced applications. Ideal as a supplement for the installation of Zonepads, the Graphicpad can be fitted In the lounge or anywhere else in the home.
|
|
Article code
H4684
Description: My Home- Axolute colour touch screen
My Home- colour Touch Screen for box item 506E
Category: Installation: devices for home and offices->My Home: system with house-automation functions for the home
Technical details
Modules N°6
Series My Home
Rated Voltage 27V
Rated current In 0.08A
|
|
MASTER, the innovative CHORUS system navigator, integrates the automation of the home and video entry phone, and permits, by means of a simple touch, the total control of your home.
Thanks to the touchscreen panel and the intuitive graphic interface, the control of the home is easy, immediate and within everyone's reach.
|
|
|
|
|
|
Russound's UNO-TS2 Smart Color Touchscreen is a simple-to-use wall-mounted interface packed with friendly features. Practical in any room, it offers complete control of your listening and viewing experience.
The UNO-TS2 is an exciting new way to control a multiroom entertainment system. When used in a Russound RNET® system with a Smart Tuner or Smart Media Server, the UNO-TS2 provides valuable information such as playlist, channel name, artist name, and song title. And it supports custom presets, music themes, and source names for a personal touch.
The UNO-TS2 uses a mix of hard buttons for the most frequent commands and graphical soft keys for content-related functions. The high-resolution LCD panel is easy to read and displays the system's status in real time, including the source playing, the selected AM/FM radio station or XM channel, and the volume level in the zone it's controlling.
The UNO-TS2 also provides one-touch access to favorite CDs, DVDs, and MP3 play lists. An integrated IR receiver supports the use of the SRC1 and SRC2 system remotes and other remotes as well.
|
|
Providing added convenience, the new UNO-TS2D is the desktop model of Russound's award-winning UNO-TS2 Smart Color Touchscreen. Just like the in-wall UNO-TS2, the desktop version provides access to music and video, and displays metadata on-screen. Easily placed on any flat, stable surface, the UNO-TS2D can be located in any room in the house-within arm's reach.
To match consumer electronics commonly found in the home, the UNO-TS2D is available in black and white. Its form provides an attractive option for touchscreen control of a Russound RNET® multiroom audio-video system. Placed on a nightstand, a kitchen counter or next to a favorite chair, the UNO-TS2D offers the ultimate interface to choose home entertainment.
|
|
Crestron's Isys i/O TPMC-8X is a compact, stylish Wi-Fi touchpanel featuring the Windows® XP Embedded OS to deliver a 2-way wireless control solution with blazingly fast performance and native capabilities for browsing the Internet, streaming multimedia, and much more. A brilliant 8.4" active-matrix SVGA display and 16-bit color depth combine to produce stunning 3D graphics using new dynamic menu objects, dynamic graphics, animations, multimode objects, PNG translucency, and exclusive Synapse™ image rendering - all with astonishing speed.
|
|
|
Sensational design and a breathtaking color display give the new Pronto instant appeal. The smooth top and flush display is backed by an ergonomic 'soft feel' grip with a stylish metallic finish.
|
|
|
Simple to plan, install and use lighting controls to bring the efficiency and flexibility of controlled lighting to most commercial, catering and office buildings.
|
|
Colour Touch Panel
The innovative Colour Touch Panel makes it possible for users to conveniently monitor and control all switching operations for lights, blinds or rolling shutters, heating and air conditioning systems, burglar alarms, signalling devices and audio components. This is possible using navigation on a 5.7"large TFT screen with brilliant 4096 colour resolution.
|
|
| ... products without information |
| |
|
|
|
|
On a desk in a home office, a tabletop in the home theater, or under a kitchen cabinet - the VIA!Valet10.0-EM Widescreen Touch Panel provides complete control of all your home entertainment, lighting, temperature and security systems, and a perfect way to catch up on the latest news and weather, or view security cameras in and around the home.
Slim, sleek and beautifully finished to blend in with almost any décor, the VIA!Valet 10.0-EM features more control surface and viewing area than any other touch panel on the market for the price, making it easy to see, use and add to any home system. With its 10-inch widescreen display, the VIA!Valet is ideal for TV viewing when in the kitchen or any room that doesn%u2019t have a full-sized TV, or where space is at a premium. Now you can enjoy the best whole-house view from any room with one of the most unique touch screen solutions available.
The VIA!Valet10.0-EM can control up to 20 audio/video entertainment sources and whole-house systems with one touch. A precision, ultra-smooth hinge makes for easy adjustment to just the right viewing angle and allows the VIA!Valet to fold completely flat when it%u2019s not being used.
|
|
|
|
