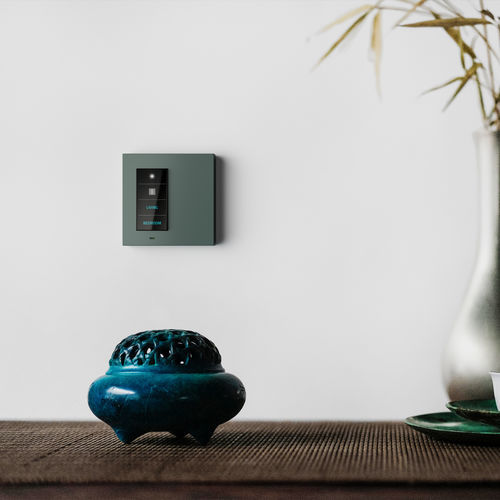

Home automation system touch screen EK-EV2-TP

wall-mountedKNXindoor

LEAVE A MARK. Signum’s strong characterisation does not go unnoticed. It leaves a technological imprint on the environments that welcome it, a distinguishing mark for those with an aptitude for the new, the different, the out of the ordinary. Description “Virtual” KNX-standard pushbutton, i.e. based on a borderless IPS touch display, in which each button can be customised via a dedicated app. it is possible to modify certain attributes of each button even after installation, e.g. position, symbols and lettering. Technical data 30 Vdc power supply via KNX bus Stand-by current consumption: 8 mA @30Vdc / max: 35 mA @30Vdc Wall mounting on round or square box IP20 degree of protection (installed) Plastic housing Climatic classification 3K5 and mechanical classification 3M2 (according to EN 50491-2) Pollution degree 2 (according to IEC 60664-1) Dimensions: 83 x 77 x 37 mm Operating temperature: 5... + 45°C Storage temperature: 25... + 55°C Transport temperature: 25... + 70°C Relative humidity: 95% non-condensing
