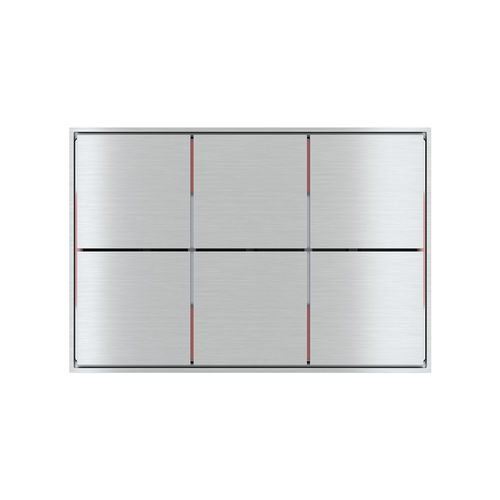

Light switch EK-EH2-TP

for home automation systemsfor roller shutterspush-button

LESS IS MORE. Description 6-fold KNX pushbutton (max. 12 independent functions). Mounting on round, square or rectangular wall box. Power supply via bus. To be used in KNX installations for home and building automation. Bus terminal block, construction-site protection, fixing screws and mounting support included in the delivery. The device has to be to completed with six square rockers and a rectangular frame of the series form or flank (to be ordered separately). EK-EH2-TP (leds colours: blue / green) EK-EH2-TP-RW (leds colours: red / white) Technical data on/off switching of single loads or groups of loads dimming of lighting devices control of motor drives (for roller shutters, blinds, curtains, etc.) recalling and saving of scenes sending on the bus of values (temperature, etc.) switching to forced functioning (lock) measuring of room temperature through integrated sensor KNX device for switching and control single loads or groups of loads. It has to be used in KNX installations for control of homes and buildings. The ekinex® 6-fold pushbutton (max 12 functions) is a Smode KNX device for on/off switching of loads, dimming of lighting devices, controlling of motor drives or other programmable switching and control functions. It is equipped with an integrated KNX bus communication module and is designed for wall installation on flush mounting box. Each channel can be freely programmed for 1 or 2 bus functions and is provided with two LEDs configurable for example as a status signal or orientation nightlight. The pushbutton has to be completed with six rockers and a frame that must be ordered separately.
