DIN rail actuator EK-HA1-TP

DIN rail actuator - EK-HA1-TP - ekinex®
DIN rail actuator - EK-HA1-TP - ekinex®
Add to favorites
Compare this product
Go to the ekinex® website for more information

Description

Description

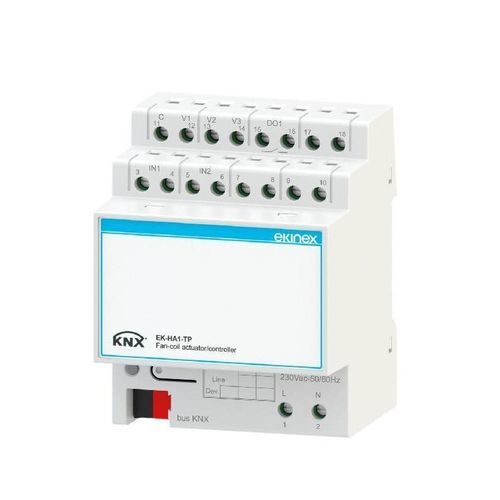

  • The Ekinex® EK-HA1-TP actuator/controller is designed to control a fan-coil unit for space air conditioning.
  • The device can operate as a simple actuator when used with a KNX room thermostat or as a regulator/actuator acquiring temperature from a KNX room sensor or from a sensor connected to an analog input.
  • Suitable for 2-pipe hydraulic distribution systems with ON/OFF control of a thermal actuator for a shut-off valve and a fan with three discrete speed levels.
  • Outputs not used for fan-coil control can be configured as binary output channels for other functions.
  • Equipped with 2 inputs freely configurable as analog or binary.
  • Integrated KNX bus communication module. Designed for mounting on 35 mm DIN rail. Bus KNX provides electronic supply; an additional 230 Vac mains supply is required for load power.


Technical data
Power supply
  • Load supply: 230 Vac 50/60 Hz
  • Electronic supply: 30 Vdc via KNX bus


Inputs
  • 2 freely configurable inputs for acquiring temperature values from passive sensors (NTC 10 kΩ at 25 °C) or as potential-free binary inputs


Outputs
  • 3 interlocked relay outputs for controlling a fan at 3 discrete speeds (or configurable as binary outputs for other applications)
  • 1 SPST relay output for ON/OFF control of a valve actuator (for 2-pipe distribution systems)


Supply
  • Delivery includes a terminal for connection to the KNX bus line


Functions / Features
  • Plastic enclosure
  • Programming button and LED on the front
  • KNX bus connection via terminal block
  • Inputs, outputs and 230 Vac connections via screw terminals
  • Climatic classification 3K5 and mechanical 3M2 (EN 50491-2)
  • Overvoltage category III (EN 60664-1)
  • Pollution degree 2 (IEC 60664-1)
  • DIN-rail 35 mm mounting (EN 60715)
  • Device width: 4 modular units (1 MU = 18 mm)
  • Protection degree IP20 (device installed)
  • Weight: 175 g


Configuration and commissioning
  • Detailed parameter description is available in the device application manual.
  • Configuration and commissioning require ETS5 or later. Application program for ETS: APEKHA1TP## (## = version).


Characteristics / Technical specifications
  • Brand: Ekinex®
  • Model: EK-HA1-TP
  • Type: 3-speed fan-coil controller/actuator
  • Load supply: 230 Vac 50/60 Hz
  • Electronic supply: 30 Vdc via KNX bus
  • Inputs: 2, configurable for NTC 10 kΩ sensors or as binary inputs
  • Fan outputs: 3 interlocked relays (3 speeds)
  • Valve output: 1 SPST relay for ON/OFF control
  • Mounting: 35 mm DIN rail
  • Size: 4 modular units (1 MU = 18 mm)
  • Protection: IP20 (installed)
  • Weight: 175 g
  • Classifications: climatic 3K5, mechanical 3M2, overvoltage III, pollution degree 2
