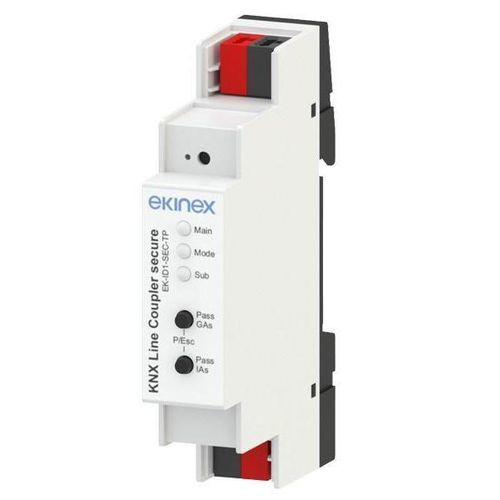

KNX line coupler EK-ID1-SEC-TP

DIN rail

Description
The device is a KNX secure line coupler providing galvanic isolation between lines and an extended filter table for main group addresses 0...31. It supports KNX Data Security (AES-128), KNX Long Frames and is compatible with ETS® from version 5. With the ETS6 product database the device can operate as a security proxy and segment coupler. Front-panel buttons allow temporary deactivation of telegram filters for testing and multicolour LEDs show operating states and bus communication errors. The unit includes an integrated KNX bus communication module, is mounted on a 35 mm DIN rail and is powered via the KNX bus (main line). As a secure interface, it prevents unauthorized access to the system.

Technical data
Power

• 30 V DC from KNX bus line
• Current consumption: main line approx. 5 mA, sub line approx. 3 mA

Connectors

• Connector for main KNX TP line (red/black)
• Connector for sub KNX TP line (red/black)

Environmental conditions

• Operating temperature: -5 ... +45 °C
• Storage temperature: -25 ... +70 °C
• Relative humidity (non-condensing): 5 ... 93 %

Other features

• Plastic enclosure (PC)
• DIN-rail mounting 35 mm (EN 60715)
• Protection rating IP20 (installed, EN 60529)
• Device class III (EN 60664-1)
• Climatic class 3K5 and mechanical class 3M2 (EN 50491-2)
• 1 module unit (1 unit = 18 mm)
• Weight: 40 g
• Dimensions (W×H×D): 17.8 × 90 × 60 mm

Functions / Characteristics
KNX

• Transmission medium: TP/TP
• KNX Security (AES-128) including Security Proxy support
• KNX segment coupler functionality
• Extended filter table for main groups 0...31

Controls and indicators

• 2 buttons and 3 multicolour LEDs
• KNX programming button with red LED

Configuration and commissioning
Configuration and commissioning require ETS5 or later. Application program for ETS: APEKID1SECTP##.knxprod (## = version).

Technical specifications

• Type: KNX secure line coupler
• Model: EK-ID1-SEC-TP
• Power supply: 30 V DC from KNX bus
• Consumption: main approx. 5 mA, sub approx. 3 mA
• Interface: KNX TP/TP, supports KNX Data Security (AES-128), KNX Long Frames
• Filtering: extended filter table for main groups 0...31
• Mounting: 35 mm DIN rail
• Protection: IP20 (installed)
• Enclosure material: PC (plastic)
• Dimensions: 17.8 × 90 × 60 mm
• Weight: 40 g
• Module units: 1 unit (18 mm)
